jwbrent

Headphoneus Supremus
Good things can come in small packages!
Pros: Viable alternative to the Chord Mojo 2, high performance 96kHz Bluetooth 5.1 capability with Qualcomm's advanced chipset, powerful output that can drive 600 ohm headphones, 4.4mm and 3.5 balanced outputs, unique chassis design that sets itself apart from similar devices, 32 bit, 768kHz capability, Asynchronous USB & S/PDIF digital inputs, IEMatch control for low impedance headphones.
Cons: When using xSpace or xBass, there is sometimes a loud pop when either of these settings are engaged which can be a hazard to one's ears with headphones connected.


Introduction

iFi Audio is no stranger to the Head-Fi community having produced unique and interesting products for many years now. This British company has a reputation of building high performance products at quite reasonable prices for what one gets, and today's review of the xDSD Gryphon ($599) epitomizes this design principle.



I'd like to begin my review by thanking Lawrance at iFi for the opportunity to review the xDSD Gryphon. Lawrance provided a new sample for this review which will be returned at its completion.



For this review, I decided to use my iPhone SE Gen 3 as my source, and given the compact nature of the xDSD Gryphon, I decided to go old school and strap my phone to it. I used my FiR Audio Krypton 5 as my headphones. All source material was lossless.

Performance

iFi uses multibit DACs from Burr Brown in the xDSD Gryphon which produce a highly detailed sound without any glare or other artifacts that can distract from one's enjoyment in listening. Low level detail retrieval is plentifully produced creating a huge soundstage on all three axes of depth, height, and width which creates an immersive listening experience that pulls the listener into the their listening, such so, that it encourages one to listen to other albums in their collection with the anticipation that favorite albums will be reproduced in such a manner that its like hearing them for the first time.

One of the features that most will find to be an additive quality to their listening experience is the XBass+ and XSpace filters. The first enhances bass performance without creating a boomy effect while XSpace opens up the soundstage even more. There is one issue with these filters in that when they are engaged, a pop sound is created, sometimes soft, sometimes quite loud, so my suggestion is to not have your headphones connected, or, turn the volume control down so there is no damage to one's ears with their use. I asked Lawrance whether we can expect a firmware upgrade to ameliorate this situation, but I was told there is no plan from iFi to update the firmware to do so.



As one can see from the above connection guide, there are multiple ways in regards to inputs and outputs to use the xDSD Gryphon ensuring connectivity for various uses. iFi includes short cables of varying types so no matter whether one uses an iPhone, Android phone, or a computer, iFi's got you covered.

Conclusion

I really enjoyed my time with the xDSD Gryphon. It has so much flexibility in how it can be used with its controls and connections, I liken it to a Swiss army knife. And its audio reproduction performance is stellar for the reasonable price of admission.
Last edited:
  • Like
Reactions: iFi audio
iFi audio
iFi audio
Thanks so much for giving us your thoughts and impressions, especially the "Swiss Army Knife" It is a very versatile unit.

We appreciate your time and thoughts!

Cheers!!
jwbrent
jwbrent
It was fun to get to know the Gryphon, so thanks again for the opportunity!

baskingshark

Headphoneus Supremus
Pros: Robust build, portable and light
Multi-functional device
Decent battery life
Good power on tap (except for outlier transducers)
Balanced and single-ended outputs
Supports multiple Bluetooth codecs
Has in-built iEMatch and low output impedance to synergize with low impedance/high sensitivity gear
Filters and bass/soundstage boost settings to play with
Supports wide range of music file formats
Does not get hot with usage
Smooth and lush tonality, fatigue-free sonics
Organic timbre
Nice imaging and layering
Cons: Slow to fully charge
Some noise floor noted with sensitive IEMs (can be mitigated with in-built iEMatch)
Occasional Bluetooth stuttering/drop outs
Coloured tone may not be for purists who want a dead neutral source
DISCLAIMER

The Gryphon is a loaner from iFi. It will be returned after this review.
It can be gotten here: https://ifi-audio.com/products/xdsd-gryphon/ (no affiliate links).

Gryphon 11.jpeg



SPECIFICATIONS/COMPATIBILITY




The Gryphon's engine is a Burr Brown DAC, and this gadget can function as a DAC, amp, pre-amp and Bluetooth device, increasing its versatility tremendously.

It is compatible with multiple music formats, including DSD, PCM, DXD and MQA. PCM can be played up to 32-bit/768kHz via USB (or 192kHz via optical/coaxial), with native playback up to DSD512, and full MQA decoding (up to 384kHz).

The Gryphon is also compatible with myriad Bluetooth codecs, which should please our brethren who use wireless gear. The Gryphon has balanced and single-ended outputs, with the former providing more power. This may be useful for demanding transducers if more headroom is required.


ACCESSORIES

Other than the Gryphon, these are included:
- 1 x USB-A to USB-C cable
- 1 x USB-C to USB-C cable
- 1 x lightning to USB-C cable
- 1 x carrying pouch

Gryphon 1.jpeg


The accessories are pretty serviceable, and users of both Android and Apple devices should be covered with the spread. Perhaps only legacy type devices that utilize micro-USB ports or older ports may face an issue, but no biggie getting an aftermarket adapter I guess.

The velvet carrying pouch should prevent scratches on the Gryphon, but it won't prevent drops or knocks, so perhaps a hard carrying case would have been desirable, but this is just nitpicking.


DESIGN/FUNCTION

Fashioned from aluminum chassis with an OLED display, the Gryphon is industrial looking but functional. The build is solid and tough. Measuring 123 x 75 x19 mm and weighing in at 215 g, this device is quite portable on-the-go, with no excessive weight or bulkiness.

Gryphon 2.jpeg


A rectangular OLED screen on the top of the DAC/Amp displays audio format, sampling rates, volume, input mode, battery levels and whether the XSpace/XBass II functions are enabled.


The Gryphon has a ton-load of connectors and ports, and these are what they do:



On the front, we have the single-ended (3.5 mm) and balanced (4.4 mm) output ports, with the latter reinforced with gold-plating. No 2.5 mm or 6.35 mm ports are present, but once again, one can easily source for an aftermarket adapter if your cables are in these terminations.

Gryphon 5.jpeg

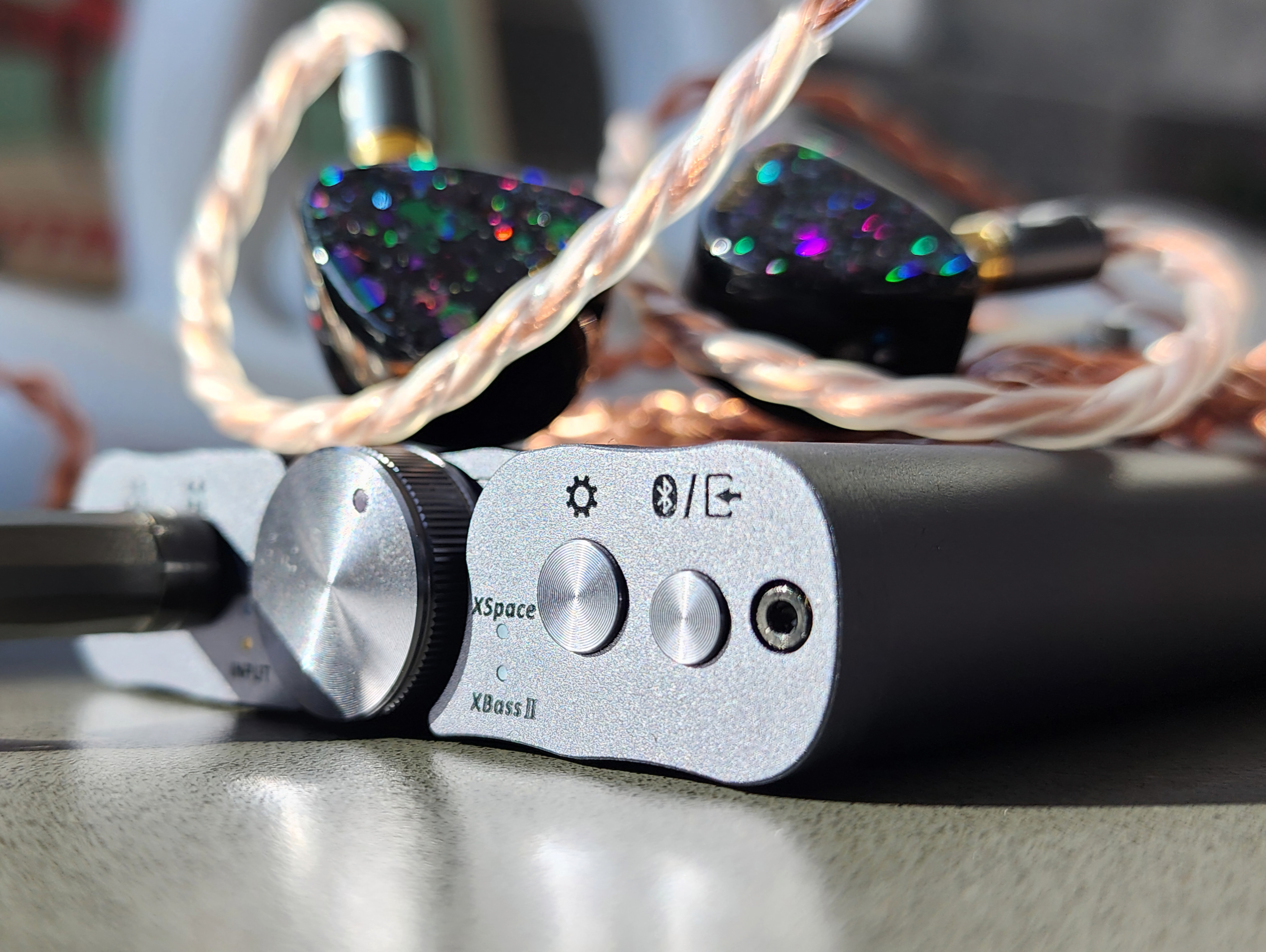

We also have the XSpace and XBass II buttons, volume knob and the input selector buttons on the front. The input selector buttons will switch between USB, Bluetooth, Line-out and S/PDIF options.

The XBass II boosts bass for our basshead friends, whereas the XSpace function is kind of a spatialiser to open up the soundstage. Do explore these functions and see if they are your cup of tea.



The volume knob functions as a power on/off button, an analogue volume control, a mute/unmute control and even accesses the menu setting:


Inside the settings menu, we can select stuff like USB-C port charging/input, screen brightness, BT voice prompting and digital filters. Basically the usual she-bangs that any audiophile would require is included here.

These are the 3 filters included with the Gryphon. Do explore to see what suits your needs, thought the differences in sound are quite subtle to my ears.



This device flashes a different LED colour on the front panel, depending on the audio format/sampling:
LED ColourMode
YellowPCM 48/44.1 kHz
WhitePCM 768/705.6/384/352.8/192/176.4/96/88.2 kHz
CyanDSD 128/64
RedDSD 512/256
GreenMQA
BlueMQA Studio
MagentaMQB (Original Sample Rate)


The input and volume levels also showcase different LED colours, which is quite useful at a glance:




On the base of this device, we have the serial number and a built-in iEMatch. There are rubberized feet to add grip during usage.

Gryphon 4.jpeg


The iEMatch (https://ifi-audio.com/faqs/what-is-the-iematch/) is a nifty tool to match the Gryphon to transducers that have very low impedance (based on the audiophile rule of eights). And the best part is that unlike other impedance adapters, the iEMatch doesn't skew the frequency response of the IEM attached. Thus, this is a very important tool that increases the Gryphon's compatibility with fussy gear eg Campfire Andromeda.

There is some hiss with very sensitive IEMs on this device, so toggling the iEMatch also gets rid of the hiss!


At the back of the Gryphon, we have a bass/presence toggle switch. This affects what the XBass switch at the front changes in the frequency response. Also at the back are the input and digital ports, in addition to the USB-C and charging connectors.

Gryphon 3.jpeg



I am glad to report that the Gryphon gets just slightly warm with usage, but nothing very hot or scalding, unlike some competitor devices.

For those that are interested, the Gryphon utilizes many choice components, as detailed in the photos below:




BLUETOOTH

Gryphon 6.jpeg


The Gryphon contains a Bluetooth 5.1 module with QCCS100 chipset, supporting 96 kHz HD BT formats including aptXHD, aptX Adaptive, LDAC and HWA/LHDC! During my field tests, the Gryphon was easily recognized by multiple Windows and Android devices, including DAPs (I'm sorry but I do not use Apple devices, so can't comment on this aspect).

Bluetooth range is about 10 metres without obstructions, and 5 metres with obstructions. Sadly, there was some stuttering and occasional drop outs with longer distances or larger obstructions.


BATTERY

On balanced, I can hit about 7 - 8 hours on the Gryphon thru wired connection, using FLAC/WAV files at moderate volumes, which is okayish in my book. Do bear in mind though that with repeated charge cycles, the battery life is expected to go down.

Sadly, the Gryphon takes a whopping 5 hours or so to be fully charged, which is a bit disappointing. That's like a big fraction of the actual play time!

While the Gryphon can be used to play music while charging, it does get slightly hot with this combination, and will also take longer to charge too.


SOUND

The Gryphon bestows a warm-neutral tuning. Perhaps it isn't as warm and analoguish as some other iFi gear, but it still lies on the warmer side, with a thicker note weight than neutral sources. Timbral accuracy is very natural and timbre freaks should have no complaints here.

Indeed, nothing sounds artificial unlike some treble-boosted DAC/Amp rivals, and it is very musical with sibilant-free sonics. The treble and upper midrange are quite restrained. Bass is emphasized, but nevertheless has good texturing with solid sub-bass extension. As alluded to above, bassheads can activate the XBass switch to increase the bass quantity even further.

In technicalities, the Gryphon has an expansive soundstage with superb layering and instrument separation. While it isn't the most micro-detailed compared to some steroid infused competitors that boost the high-end frequencies, there is still decent clarity and resolution available. The keyword to describe this device is "natural". Everything sounds as it should, with a musical signature meeting good technicalities.

Due to the tuning, the Gryphon is an excellent pairing with so-called shoutier or harsher gear - such as the AKG N5005 for example - in taming the upper end. This DAC/Amp can be used for hours on end for a chill and relaxing session, without too many compromises in resolution.

On the balanced output, the Gryphon can provide 1000 mW at 32 ohms and 74 mW at 600 ohm. Thus, it can drive most gear out there, perhaps other than some planar headphones or extreme outliers. Unsurprisingly, this DAC/Amp has more power on the balanced (4.4 mm) port when compared to the single-ended (3.5 mm port), with increased dynamics and headroom heard on balanced, especially for harder to drive gear.

These are my usual acid tests when testing out a new source:
- Final Audio E5000 (low sensitivity at 93dB/mW)
- Sennheiser HD650 (high impedance at 300ohm)
- Yinman 600 ohm (600 ohm impedance and 87db/mW sensitivity)


Gryphon 10.jpeg

If the Final E5000 is underpowered, it sounds bloated and untextured in the bass, with one-noted boomy basslines heard. The Gryphon easily aces this tests on its 4.4 mm port, with no smudging in the bass, even with complex bass tracks.


Gryphon 8.jpeg

The HD650 sounds boring and undynamic if not juiced well. The Gryphon adequately powers the HD650 to fine dynamics and bass tightness, though unsurprisingly, some desktop level amps might probably do a slightly better job.


Gryphon 9.jpeg

The final boss, the Yinman 600 ohm earbuds, has very low sensitivity with a high 600 ohm impedance. The bass can be very nebulous and fuzzy when it is not driven well. The Gryphon can power this behemoth on the 4.4 mm port, though the bass does smear somewhat on complex tracks, with a slight lack of dynamics. Having said that, it is no shame to be unable to juice this earbud, most of my portable sources can't even drive it adequately, and the Yinman 600 ohm probably needs desktop amps with larger power on tap to do justice to the sonics.

The Gryphon has <1.0 ohm output impedance both output ports, allowing it to be paired with fussy sensitive IEMs like the Campfire Andromeda (based on audiophile rule of eights) without skewing the frequency response. As described above, there is hiss with some sensitive IEMs, but toggling the iEMatch easily fixes this.

I did not encounter any EMI with the Android phones and DAPs that I paired the Gryphon with (I'm not an Apple user so I can't test it on those devices though).


COMPARISONS

The Chord Mojo 2 is more neutral and slightly more technical, with better soundstage and imaging.

However, the Mojo 2 has EMI with some phones, and has no Bluetooth function. Importantly, it does not have a balanced output! So for folks who have gear that are primarily terminated in balanced, that might be a bummer. Lay consumers who want convenience with Bluetooth gear might also have to look elsewhere from the Mojo 2. From a versatility and practicality standpoint the Gryphon is a better device IMHO.


CONCLUSIONS

Gryphon 7.jpeg


Be it as a DAC, amplifier, pre-amp or Bluetooth device, the Gryphon is a literal swiss army knife portable source that can do most departments to a high level. Build and battery are more than adequate, with decent power on tap to deal with transducers other than demanding tough customer outliers. The Gryphon supports various Bluetooth and music formats, in addition to having filters and bass/soundstage boost options.

I quite appreciate that this device does not get hot during listening, and it has a low output impedance and an in-built iEMatch to cope with finicky low impedance/high sensitivity gear, thus increasing compatibility. Listeners will be greeted with a lush warm-neutral pleasant sound, with great imaging and layering, and top-notch timbre. The Gryphon synergizes well with bright headphones and IEMs, letting one chill to music for hours on end!

There are some areas for improvement, namely, the snail's pace for charging, occasional Bluetooth stuttering and drop-outs, and perhaps very demanding transducers may not be adequately juiced. Additionally, this DAC/Amp is coloured, so folks wanting a dead neutral or brighter source might need to consider alternatives.

Those are small nitpicks in the big scheme of things, and the Gryphon is an excellent all-in-one equipment that audiophiles and lay consumers should consider getting. I am quite sad sending this loan unit back after the review, perhaps I might purchase this baby at the next sale!
Last edited:
ruffandruff
ruffandruff
Nice review and comparison mate
NymPHONOmaniac
NymPHONOmaniac
very nice review mate. Gryphon is indeed ultimate army knife and natural tonality is both musical and versatile.
hanumanbob
hanumanbob
Love mine but you missed a big fail. Theres a switch geared towards IEMs under the device and it's way to easy to flip and then you have no idea what's going on with the sound. This is a big design fail. The switch should have been depressed into the body so it's much more difficult to flip by mistake.

ywheng89

100+ Head-Fier
iFi Gryphon's Review - Versatile Powerhouse
Pros: Highly versatile and easy to pair with most IEMs and Headphones
Plenty of power for most IEMs and efficient headphones
Packed with features
IEMatch makes pairing with sensitive IEMs a bliss
Bluetooth connection is stable
Slightly warm and dynamic sound
Cons: Bundled pouch can be better
Recharge time is slow
The loud pop when switching on the Xbass/Space features, though minimised from the firmware update, but it is still present
NOc35vqt9yA_fNdTwC3UtPugVfSeEmyf_Grj1izPBRUct0vvv0DPnT7Dyol2zDbv4EmvIzoNJ1BtMKrfdt3w1jPUTcwo9x68ONkw6jrHEgau6oZ7o79v9SKUNItDU1rp6VWC6n4ny3qenBEaP07SNNA

General/Build/Packaging
iFi needs no introduction to fellow audiophiles. Having tested several products from the brand, I'm quite familiar with the brand’s house sound. iFi xDSD Gryphon sits below the micro iDSD Signature in terms of the price.

Build quality is solid, the buttons have good tactile feedback, switches/toggles are not wobbly at all. The packaging is the usual iFi’s packaging, Gryphon came with high quality USB C-C, C-Lightning, as well as C-A cables, which covers the use case for most of the users, also came with the Gryphon is the black storage pouch, personally i wish it came bundled with a better case given the price point.

*iFi is kind enough to send this unit over for the purpose of this review. All thoughts are of my own and i am not influenced in any way to produce this review.

9tpiYel1ZPHTsoIE55T6mDJOorGoNliMQlIJaLmBdrLbWcSahDk3a1IDtP1VpKoLBRccwKsl-riDhFaSXRhPBP09uuHT5E1WO45t-a6eN_a4Ru7ZTRM6iDukM9SnHO9Y5Ad_z-tIgJhCfPWC19YGcnE
VKXV6SAbj6fH_2dTIwQzym-D1d8b1TVUazKFOzLirns0Nqv3_6xyhTz8Jn2r74pbY_I76-6RqzMNKlzjsKnxRqqVB1DltnfkCLiuZXiquOWMaVm848HJSWEI5I_WddKOl82F92AFnAaRsqFAZlP0G6E


Specifications (Grabbed from iFi xDSD’s product page)
nK6B_z8uH3F9MAgtp5m1RRSGiVuzBsUwA9B5BYWrzAOeXnZlfCfT33P-fwkmWVFdqZX67WoxQlBx-Cg3EuuUwRdtnmEI_dpm6wup8xXfvAnC-BGY7qVQv4Hy3riyuP-zN3Lp6xnIGE8L6M23EIOitjk


IEMs/Headphones/Equipments used for this review
  • Kiwi Ears Orchestra Lite 3.5mm
  • Simgot EA500 4.4mm
  • Thieaudio Ghost 4.4mm
  • iKKO OH5 4.4mm
  • 7Hz Timeless x AE 4.4mm
  • Macbook Air M2 -> iFi xDSD Gryphon -> Apple Music
  • Macbook Air M2 -> iFi xDSD Gryphon -> foobar 2k (tracks ranging from 16-44 to 24-192)
Foreword
My review is solely based on what I hear via my equipment and I never consider my reviews to be objective in any way rather a subjective approach. Do take into consideration that everyone’s ear anatomy is not the same, so the psychoacoustics perception might be different as well, but i believe it will not stray too far

Features
iEMatch
  • Gryphon comes built in with iEMatch toggle that allows you to choose either to enable iEMatch for 3.5 or 4.4 or off
  • This feature is very useful for IEMs that has high sensitivity, meaning when you plug it into either 3.5 or 4.4 port, you will hear the hiss even though there’s nothing playing, this annoying phenomenon can be eliminate by turning on the iEMatch
  • Another useful point for the iEMatch is that it will enable a better dynamic range for your IEM that is sensitive, Eg: current volume step is at 30/100, turning up the volume to say 35/100 is very loud, while turning down to say 32/100 is not that loud but you feel that the dynamic is not there, this is when iEMatch comes into play, allowing you with additional headroom, hence staying at 35/100 will not be that loud anymore while retaining that dynamics, not to mention you will be able to push it to say 40/100 as well
Battery Life
  • The rated battery life is 10 hours, i did not manage to get close to the rated battery life, i am getting approximately 7-8 hours via USB, a mixed usage of streaming via Apple Music, offline files from foobar, volume is at 50, listening via 4.4, if i am using bluetooth, the battery life will be slightly lower at approximately 6-7 hours, which is still quite good in my opinion
  • I mainly use the Gryphon on desktop mode, the ability to use and charge at the same time is a very welcoming feature, it does get a little warm when you are using it and charging at the same time, but definitely nowhere near Chord’s Mojo’s kind of warm if you used Mojo before
Sound Impression (Bit Perfect Filter)
I have tried and owned several iFi products in the past and I would say the tonality is more on the warm-ish side, Gryphon is no exception either, but it is not as warm as the Zen Dac+Can stack, I would say a slight hint of warmth. Transient response is fast enough and the overall experience is quite musical to my ears. If you are someone who prefers a reference or uncolored sounding DAC/AMP, you should look for other options as Gryphon is not that, it is musical and slightly coloured to give the listeners a musical experience. Overall it is natural and slight warm sounding, definitely not clinical sounding.

To be frank, i am not able to discern between the Standard filter mode vs the Bit perfect filter. However, with the GTO filter on, Gryphon doesn’t sound that warm and it is a lot more dynamic and also the speed of the transients is faster, in my own words, it sounds more musical, and lively, high hats and cymbals especially.

Bass
  • Bass has good texture and it kinda make the IEM that’s paired to it has a little bit more body on the bass
  • Sub bass has fairly good extension and rumble when it’s called for
  • With the Xbass II at your disposal, you can be certain that whichever IEM or headphone that you find is lacking low end, turn the Xbass II on and be prepared to be amazed by the quality it produced
  • Why is iFi’s Xbass different from others bass boost feature is that Xbass is implemented entirely on the analog section instead of digital, hence the output is clean and distortion free
  • With the Xbass II on, bass has got even more body and also quantity to it, sub bass also rumbles harder, all this without distortion and clean sounding (this is with the Xbass’s switch on bass)
  • With the Xbass II on with bass+presence switch, you get a much better experience on the presence’s region (more open sounding) as well as boosted bass quantity and quality, it sort of balance up the frequency range between the presence region when you boost the bass, so you don’t just hear the bass at the expense of presence
Mids
  • The mids has got the good old iFi’s house sound to it, warmth and lush yet doesn’t sound veil
  • Stringed instruments has sufficient warmth to it which translates into good note weight and not thin sounding
  • The vocal presentation of both male and female has very good body to it and the positioning of the vocals are not too recessed nor forward, with the XSpace turned on, the vocal is being pushed forward slightly
Trebles
  • There’s no elevation on the treble on the Gryphon as with most of the iFi products that i have tested (GoBlu, Zen Dac/Amp/Air Can)
  • The trebles are smooth and non offensive, yet detailed at the same time
  • The definitions are good and even when you crank up the volume, the treble doesn’t fatigue you, it is just natural sounding, in my opinion, it makes the Gryphon a good candidate to pair with IEM/Headphones that are slightly hot on the treble
Pairings
Kiwi Ears Orchestra Lite

  • Bass exhibited better extension, sub bass has better extension and it has more body to the bass and better texture overall with this pairing
  • The treble has been extension and doesn’t sound that dark compared to other source
  • Soundstage has more width and depth, doesn’t sound that 2D anymore
  • Hit the Xbass on, and you will be rewarded with thumpy and punchy bass, also better sub bass extension and rumble as Orchestra Lite is lacking bass quantity in nature
Ikko OH5
  • OH5 is warm on its own, some might think it’s a bad idea to pair it with Gryphon
  • Pairing it with Gryphon makes the soundstage has slightly better width and depth
  • Bass has better body to it overall as well
  • Treble doesn’t have much changes to my ears
SIMGOT EA500
  • This particular pairing is the most interesting to my ears
  • EA500 itself is quite musical to my ears, pairing it with Gryphon that has slight neutral warmth characteristic to it makes the overall experience very pleasant
  • Bass is slightly elevated and Gryphon seems to smooth out some “rough edges” on the treble
  • Soundstage has very good width and depth to it and seems to image better as well
Thieaudio Ghost
  • Ghost is neutral and slightly lean sounding in nature, pairing it with Gryphon does add some hint of warmth to it and more body overall
  • Xbass works wonders here due to the open backed nature of this headphone
  • Treble is smoother while retaining the details
  • Soundstage has better width and depth and slightly better imaging
Comparison (Earmen Angel)
  • Uses different DAC chip (ES9038Q2M) and has a lot more power compared to iFi Gryphon
  • Different sound signature compared to Gryphon, more reference sounding (uncolored) compared to Gryphon, neutral and dynamic sounding
  • In terms of size, Angel is bigger, similar to Diablo in terms of size
  • Angel doesn’t have any analog EQ implemented on it
  • In terms of sound, tonality wise Angel is neutral and very dynamic sounding, as transparent as it can be, bass performance is more or less similar sounding to Gryphon, with the exception of Gryphon having several EQ option for the bass and the ability to taylor the bass and presence with the switch built in
  • Feature wise, Angel has 4.4 and 3.5 line out, coaxial, 3.5, 4.4 input with the exception of having the ability to use Angel solely as an amp like the Gryphon
  • If you are using IEMs and efficient headphones, you are better off with Gryphon
Final Thoughts
Having tested and used the Gryphon for almost two months prior to publishing this review, despite not being the latest product in the market, Gryphon definitely has what it takes to still make the statement today in the fast moving market with the competition from the Chinese and other brands. Gryphon is a versatile product and I find the use case is very suitable for portable users and also users that don't use any power hungry headphones.
The power output is sufficient for most IEMs out there and also headphones that aren’t power hungry (Tested with the headphones which I owned, Thieaudio Ghost, Grado SR325X, and also Harmonic Dyne’s Athena). In terms of sound, it is also not as warm as the usual iFi’s house sound making it suitable to pair with a wide range of transducers, on top of that, with the ability change the sound to your liking, more bass (Xbass II), more open sounding (Xspace). The size of it, just slightly larger than the HipDac, with the addition of bluetooth input, i can basically use the Gryphon anywhere whenever i want to, making it the true portable powerhouse. Impressive package overall and highly recommended!

GYBRAg6xveorvBVl3t2ce_jxTUgTnSyBWQzKrN2sIwEEZH33oxED_3Or0UbjSBMXCv7haMlG4cXiOh5-XgY3AU6aZCzJFMHTA4wdG1dAm5cNwWtEk9T8x1Ge7AFqCH77jp2EoVoZFvy7RwgH9b8hISs
-RjrLGJNq4yrUeSLUpZAQidsIcAgKrMJEbCxnpQaSfVINg2WbOQMTOAfKfFsFIeB6zVPyeAZ_JWaVJRicGhb5kDMzgX8qe08pr6x3fCS-Xe0CrkoqyyBZTkrVa-MC0ULGd4XahGv189flyoFsQ3LL3E
Last edited:
ywheng89
ywheng89
Many thanks for the kind words @jmwant..
i think Timeless and the hipdac is a good combo although i havent heard this combo yet, but having experience with the hipdac previously that has some warmth to it, i think it is quite suitable for the Timeless
Ronnie frown
Ronnie frown
I just love everything ifi makes, this is going on my to buy list. Thank you for the review
ywheng89
ywheng89
You're welcome @Ronnie frown ! A very capable all in one in my opinion!

Dsnuts

Headphoneus Supremus
IFI Gryphon
Pros: Pocketable, wireless portable Dac/Amp
Solid all metal build.
3 usable digital filters.
IEM Match for 3.5mm and 4.4mm for sensitive IEMs.
Bluetooth 5.1 with every Codec imaginable.
Real world testing of up to 40 ft indoors of signal.
A plethora of high-end design incorporating
Separate bluetooth/ Digital/ Amplification stages.
3.5mm and 4.4balanced analog inputs.
Option for charging while connected to your computer.
Decent 7 plus hours or real-world continuous usage
Superior IFI sound quality.
XSpace and XBass+ feature
Added extra toggle switch for XBass functionality.
Superior OLED display screen.
Intuitive controls and functions
Perfect for IEMs and easy to drive Cans.
Cons: Could have better battery life.
Could have some better power.
IFI Gryphon.

The Gryphon is not a new product but since its release over a year ago it has easily established itself as being a premiere portable wireless dac/amp option for all your sound needs. I own a few IFI products going back to the first ICan desktop amp. It was the first time I have seen an effective use of what at the time was called 3D switch and a bass boost switch called Xbass. Still to this day I find myself slack jawed at the magic of the 3D enhancement and bass boost that actually did exactly as described. It was what separated the ICan vs my other amps, I can remember countless hours of listening to my music using these switches. I still use it on occasion when I need to experience that magical 3D switch with bass boost on my Cans again.

Since then I've gotten the IFI Black label, it was at the time, a landmark dac/amp as it brought the idea of a transportable full fledged dac/amp you can carry from your desk at home to work and back for the same powerful sound performance. It was the Black label imo that firmly put IFI on the map as a premier audio hardware manufacturer for me. The relatively newer Signature was the last of that same bar form factor. Which I use just about every week to do IEM reviews for. Its power, sound quality and versatility is absolutely one of the best in its class in what it does. However these two devices are transportables both having their own batteries with the previously mentioned newer integration of Xbass and 3D enhancement switches. The thought of having a true portable with these aspects has always intrigued me.

Now we have the Gryphon which is a much more compact, portable wireless dac/amp that can throw out 1,000mW of power @ 32 ohm in its balanced 4.4 out. Which is a decent bit of power to drive easy to moderately power hungry Cans and all manner of IEMs and buds with not much struggle. More importantly brings its trademark Burr- Brown DACs smoother detailed, superb musical sound performance on the go.

The Gryphons design reads like a long laundry list for a modern high tech audio device with a stunning array of design applications that culminates into a true do it all Dac/amp for portable usage. You can look up the full array of specs here. The idea of a do it all Dac/amp wireless device in the Gryphon has everything to do with upgrading your sound performance connected to whatever sound output device you plan on listening to music or media with. The swiss army knife approach here will meet the needs for most with the exception of needing more power to listen to much harder to drive headphones and planars. I suppose that is where the devices like the Signature and IFIs flagship transportable the Diablo would come handy. For the rest of us that mostly use IEMs and easier to drive headphones on the go.. The Gryphon is a substantial source that can do just about anything you need it to with an easy to use interface and a serious premium look for a portable dac amp.

With that being said. I would like to thank IFI for the loaner of the Gryphon for the purpose of a review. I would also like to publicly apologize to IFI for the lack of communication on my end as I was absent minded in my obligations during my time using the Gryphon. I am grateful for your patience and understanding during what was one of the most taxing times for me as a part time reviewer and full time hobbyist. Onto the review.

A bit into their design.
It uses separate Bluetooth, Dac and Amp stages all in one. 3.5mm single ended, 4.4mm balanced and both using what is called S-balanced and their highly regarded IEM Match switch on the bottom of the device itself making it suitable for highly sensitive IEMs. You get the device a black pouch and 3 cables included. USB-C to USB-C. USB-C- Apple lightning, USB-A to USB-C for computer use. A well laid out instructional card. With a full battery charge, you're off listening to your favorite tracks from your phone, tablet, computer, or DAP streaming or connected to the Gryphon.

What makes the Gryphon so versatile is that not only does it include the highest end codecs for bluetooth applications with a stout signal to stream your music from your sources.. LDAC and LHDC to name a few. But can also be used as a standard dac/amp sound card for your computer phones and tablets via USB-C connection or SPDIF connection. Can be charged while connected to a laptop or not, you get an option there. Can be used for its amplification via analog line in single and 4.4 balanced. Can be used in a variety of ways connected or wireless. Ideally it should be the one wireless dac/amp to rule them all.

The size of the Gryphon is roughly 3”x5”, compact, tight looking solid feel and ergonomics, it is the size and design of a solid metal drinking flask. You know, the one your boss carries around in his suit pocket to take a bit of the edge off the day.

The design is modern sleek all metal design with excellent clear OLED screen on top displaying volume, source type, battery, music sample rates with bluetooth indicator and or codec activated. This display has spoiled me as I own more expensive dac/amps that don't have it. And those devices feel like it is missing something. Very nice touch on the display by IFI.

The front of the Gryphon has a clear intuitive layout of the controls with a well designed analog volume knob with small ridges for texture. Centrally located illuminated with a LED light which changes color depending on volume level. The volume wheel has a push button function to turn the Gryphon on or off, to pause music and to select an option in settings. The button push has to be deliberate and kept pushed in for 3 seconds for its on and off function so no unnecessary power on and off mishaps. On the left side of the volume wheel are the plugins for your headphone and earphones. 3.5mm single and 4.4mm balanced. With two indicators for khz and input. On the right side you get some function buttons that trigger the settings for XSpace the newer version of 3D for IFI amps and Xbass + or both triggered at the same time. Farthest right is another function button for bluetooth and input.

The Xbass function for the Gryphon gets a +. It is more than just extra bass this time. There is a smaller physical toggle lever on the back side of the Gryphon to add some added EQ adjustments using the Xbass+ option up front. The idea there is you can dictate what that Xbass+ toggle does for your sound. The lever out back gives you options for Bass, presence and presence + bass. This was a bit of a surprise to me as being an IEM reviewer with more IEMs than I own clothes. Having more options on how your source will throw out a sound is never a bad thing.

A quick flip of a lever gives me quick EQ adjustments to enhance the flavoring of what I am hearing. More bass is exactly what you would expect, an uptick from the Gryphons mid to sub bass, for neutral IEMs with bass that need some boosting this is a great option. Presence is a boost for the upper mids presence and you get a more forward cleaner sound using this. Adding both will give you a more forward bass boosted sound. The less colored your IEMs sound signature is, the more properly effective these options are. IEMs that are already tuned with plenty of bass and upper mids don't need any of that so it will depend on the IEM and or headphone you have attached to the Gryphon.

Initially when I first got the Gryphon I thought the + stood for even MOAR bass. But apparently it is for more variety of adjustments. XSpace is a slight tweak for the treble emphasis that gives an expanded sense of stage. This and the presence tweak does wonders for darker bassy IEMs that needs a bit more air and space to balance out a full bass end.

Then there is the included IEM match switch on the bottom of the unit for your highly sensitive IEMs to be used in either 3.5mm single or 4.4mm balanced out. Testing out the IEM match works great for very sensitive IEMs. Campfire Audio, Shure and Yanyin IEMs all benefit from this switch. Your standard IEMs measuring from 16-50 Ohms will do just fine with the Gryphon. However, it does show some hiss with prior mentioned IEMs. IEM match does exactly what it should in mitigating hiss, and this gives the Gryphon that much more in the way of versatility for what it can be used for.

Use cases and testing.
Beyond the stout bluetooth signal you get from the wireless signal at about 40ft indoors through walls. The main reason for the Gryon is to deliver a higher quality audio experience you don’t normally get from your phones and computers. It delivers a moderate 7 plus hours of continuous real world testing through both its single ended and balanced out playing a variety of my music tracks via LDAC codec out. Its battery time is decent enough but with added features like Xbass on it will cut down the time of use. Most folks would probably want more battery but that would have meant it would have needed a bigger battery so the actual use time is decent here but not really great. It does take a good up to 5 hours of charging with no fast charging I am aware of. The charging feature while connected to your laptop is handy as it can play your files while charging at the same time. This option can be toggled in USB settings.

Settings option button on the front gives you options as follows.
Digital filter 3 options, bit perfect, standard,GTO
Screen brightening, High or low. Strangely no medium. So it is basically bright or dim.
Volume limiter on or off
Volume sync on or off
Volume soft ramp on or off
BT voice prompt- used for when using your phone
USB dual port charge- on or off
Factory reset.


Media use. Music listening is a given but I also used the Gryphon connected wired and wireless out of my laptop and in this use case scenario with the Xspace and Xbass on. The experience is easily worth the price of admission. Not only does your media watching and game playing become much more dynamic and profound sounding but you can clearly tell a difference not using the Gryphon. Sound quality is clearly stepped up in both scenarios and if convenience of not being tethered via wired connection matters. You can open your small work station at a Starbucks, turn on your Gryphon, connect wirelessly and enjoy some music and or get a game of Modern Warfare while drinking your favorite overpriced coffee beverage.

Movie watching is enhanced so much with the use of the Gryphon, it is a no brainer to get your sound proper for watching your favorites. You got a long commute or you're flying overseas? Gryphon will come in handy for longer flights.

Wired and wireless.
Most of my music listening using the Gryphon was actually done using the outstanding bluetooth connectivity via LDAC codec streamed via my devices however. It is when you connect the Gryphon via USB from the same devices where you will get an uptick in dynamics, layering and stage for sound vs the wireless sound quality. I was absolutely happy with how the Gryphon here performs with its strong bluetooth signal, especially using my little gaming laptop however for the absolute best sound quality you want to be connected using wired connectivity. Sound quality ramps up to a noticeable degree.

I also tried using an older Fiio X3ii line out to the back end of the Gryphon. The Gryphons amp stage is no joke my friends. I know most folks will not use the Gryphon in this fashion as the old days of stacking an amp to your phone is something of a lost art. I suppose that would go against the idea of buying a bluetooth wireless device in the first place. In any case, the sound of the X3ii ramps up quite a bit using the Gryphon line in. Never heard the DAP sound better. Also with the added benefits of XSpace and Xbass+. Plenty of power, sound expansion. Very musical and full bodied. This is worth trying if you haven’t yet. Time to pull out them old pure silver interconnects you spent too much money on.

Music listening/ Sound
I would describe the Gryphon as a portable version of their house sound. Not exactly the musical full bodied warmth of their transportable devices but I can definitely tell they share some Familiar DNA for its sound production. Gryphon uses 3 digital filters which can be toggled with a longer press using the settings switch which allows for choosing one of the 3 filters. The 3 filters give a slight digital tweak on the sound processing that enhances the sounds when triggered. Bit perfect is just like it sounds. There is no processing there, just pure music the way it was meant. Standard mode adds a modest pre and post ringing. GTO stands for Gibbs Transient Optimized which upsamples files to 384/352Khz, minimum filtering,no pre ringing,minimum post ringing.

Trying out the digital filters, these settings seem to affect the attack and decay of music notes, a touch giving a more sense of added reverb, space and or tightness of the sounds. Standard mode gives a middle ground of added processing that enhances music to give body with a richer tonal quality from bit perfect with no processing and the GTO filters which adds a post processing. Standard filter is what I personally prefer. Bit perfect almost sounds a bit dry in comparison vs the other filters. GTO I found to be best suited for vocal centric music. While the standard mode gives the best versatility overall. Purists will prefer bit perfect setting but it will depend on what you have connected to the Gryphon to listen to music. Again more colored your phones are, here is where that Bit Perfect will come in handy. Neutrality tuned phones connected to the Gryphon benefit from the standard and GTO filters.

Overall sound for the Gryphon is a combination of neutrality, a spacious stage presentation, natural tonal character, rich in details with a slight warmth to its presentation. Its sound quality overall is not too colored in one way or another but brings superior dynamics, detail and transient qualities with just enough note weight and body to the sounds to not make it sound sterile, dry or flat sounding. Its stage presence is impressive in that it gives a nice proper sideways oval sound presentation for headstage. I would put the stage at a medium wide in presentation, spacious wide deep with enough height to the sound for music to have proper layering. It would take desktop applications for a grander presentation so this is impressive coming from a portable device.

Trebles
Its treble aspects sees a nice neutral level of emphasis vs being a bit elevated for the sake of fidelity. Trebles for the Gryphon bring a correct tonal quality with good clarity and details that translates extremely well for IEMs. It is the very definition of delivering the goods without forcing the sound upon the listener. The reason for the Gryphons natural warmth tonality is due to the trebles being well controlled and not elevated to influence the tonality for the Gryphon. Trebles presents with articulation and most importantly coming from a source, cleanly presented. The treble aspects here can be affected with the use of XSpace and the digital filters so experimenting with these options will get you how you like to hear your trebles. Overall a good treble presence and detailed aspects of how the treble is presented is extremely important to higher fidelity and in that regard the Gryphon here sounds great due to its proper treble presence.

Mids.
This is where IFI has built its reputation for its sound quality. When describing the IFI sound, you see the term warmth and it's not the type of warmth that means your sound has got a blanket veiled across the sound. On the contrary the natural warmth you get from IFI has to do with the type of warmth you hear during a live intimate venue. The warmth that comes across hearing your favorite vocal artist. The warmth and reverb from stringed instruments. Very natural sounding and clean in the sense that there is no veil to the sounds. The Gryphon has a broad and wider mid range and is clearly a stand out for its sound production. A solid note weight for your music means the sound production has no struggle reproducing what the sound engineer had in mind when you're listening to your favorites. It was the mids and that warmer body of note of the IFI Black label that made me absolutely fall head over heels for its sound. Much like how the treble aspects for the Gryphon brings out the details the mids even to a greater degree does it effortlessly presenting a nice proper spacious presentation for the mid bands. Much like its brothers the BL and the Signature the Gryphon shows excellent presence for its height, depth and most importantly the width of its sound production. The natural musical tonal character for the Gryphon brings a true versatile higher end sound production for anything you attach to it. I have grown very fond of IFI sound signature and really for the money the sound quality is some of the best for what you're getting in the Gryphon.

Bass
The bass end for the Gryphon does not play 2nd fiddle to the mids and treble. Its bass end clearly shows quality in what it does. Stock foundational bass presentation here is not only ample in emphasis but also clearly shows agility, rangy, punchy and rumbly when called for. Its quality bass production brings forth a true versatile bass presence with all manner of music including bass genres. Bass actually is variable in that you get a healthy bass boost upon request. If I was a guessing man the bass gets a good 3-5dbs of boost from mid to lower sub bass. It's not a huge boost but clearly enough to add a bit of oomph to the bass notes. Your phones lack a bit of the low stuff? This is bass boost on the correct as the boost does not seem to affect much of the glorious mids of the Gryphon. Bass has plenty of impact, tightness and can be authoritative if it's in the track. Bass seems to be very linear in quantity in its presentation. Its base bass is very representative to the overall sound quality of the Gryphon being a premier portable dac/amp. Nothing overblown with all the goodness in an added bass boost. If you feel the need. At least you get that option here. Its foundational bass end is done very well and is about as natural and complimentary for the rest of the sound. Not to mention one of the easiest properly implemented bass boosts in the industry is just the cherry on top.


In the end.
I am very familiar with IFI house sound and it has a lot to do with their implementation of the Burr-Brown DSD1793 with its detailed yet musical sound coming from the DAC end. Its amplification is done via customized quad JFET OV4627 op-amp configuration, which brings the power, neutrality, transparency, space and warmth to the sound quality aspects of the Gryphon. Its overall sound is pleasantly detailed, dynamic, spacious and fluid all with a hint of warmth easy to listen to for hours with no fatigue. Its substantial sound quality can be used with a huge variety of all types of IEMs Cans and certainly will be a clear upgrade for your sound needs on the go or otherwise. It has been an absolute blast getting to know the Gryphon and most importantly how it sounds with my favorite IEMs and Cans. There seems to be an ever increase of competition for IFIs Gryphon nowadays but its combination of functions, use cases and most importantly sound quality still makes the Gryphon a compelling product to look into. Thanks for taking the time to read. Happy listening always.

Bonus. Cus I can’t tell you just how many times I wanted to see a comparison to the Signature.

Vs the Signature.
IFI Signature brings a desk top level sound and performance. Its a transportable meaning not really portable but can be used as such. Its feature set is not as extensive as the Gryphon as it does not include any wireless capabilities. Has the Xbass and 3D+ built in. 3 gain settings and 2 IEM match settings. The clear difference is its power output. Throwing out roughly 4x the raw power of the Gryphon. I truly appreciate the Signature as it is my one source that will easily power everything I own.

Sound wise the IFI house sound has matured with the Signature and while the tuning on the Signature is not as warm as the IFI Black Label. Its dynamics is perhaps the best I have heard from the group. That is where the Signature upgrades in the sound department from the Gryphon. Both have a punchy sound but it is the Signature that really ramps up on its dynamic sound quality. It's got a sound expansion that is even greater than the Gryphon; a meatier sounding Gryphon would be the Signature. The Gryphon and even the Black label clearly wins in versatility as to my disappointment the Signature ditches analog inputs for USB and SDIF only but uses a much bigger battery that makes it last a good 12 hours with its power output.

Gryphon has a touch more treble presence while the Signature focuses on a more full bodied mids and bass for its presentation with a grander stage. While the Signature has better dynamics and overall a grander sound it also is able to power much more difficult to drive headphones. Gryphon is more suited for IEMs and easy to drive headphones and definitely more suited for portable use. The Gryphon is the perfect compliment to something like the Signature which easily is a class leading transportable with that familiar musical IFI house sound. Highly detailed, punchy dynamics, rich tonality, slightly smooth with that warm grand sound signature. Given the size difference and space limitations with what the Gryphon is working with in its physical size. It is a modern miracle IFI was able to cram so many features into the Gryphon. But everything they did to make the Gryphon a realization makes a whole lot of sense in what it can do. The sound quality might not be at the Signature level but it's got a nicely refined sound of its own.

Attachments

  • DSC00172.jpg
    814.4 KB · Views: 0
  • DSC00894.JPG
    363.2 KB · Views: 0
Last edited:
Dsnuts
Dsnuts
I think it is more a matter of what you got connected to them which will affect sound a bit more with these sources. Its actually a good thing IFI has different sounds coming from their various sources. If it all sounded the same then our hobby would not be so interesting.
J
Johnfg465vd
For me it was the opposite of @jjazzy, I like the Signature a bit more than the Gryphon but Gryphon is still a pretty good sounding device overall.
  • Like
Reactions: Dsnuts
J
jjazzy
I liked the signature of gryphon or diablo, they are similar. The signature is a little too warm smooth for my taste

kmmbd

500+ Head-Fier
Swiss Army Knife
Pros: Excellent build quality and industrial design
– Moderately powerful balanced output
– xBass and IEMatch features are handy
– Warm-neutral tuning that doesn’t sacrifice transparency
– MQA hardware-level decoding
– Excellent BT support
Cons: The Gryphon can feel unwieldy when paired with large phones
– Not powerful enough to drive planars
– Slight hiss with extremely sensitive IEMs (without IEMatch)
– Not the best battery life when driving power-hungry cans
– High recharge times


iFi Audio has been hard at work lately as they are continually refreshing their existing models whereas throwing in a new model or two to further flesh out their lineup.

The iFi xDSD Gryphon is their latest portable DAC-Amp and in terms of pricing it sits below the venerable micro iDSD Signature. In terms of features and use-case though, the Gryphon seem to be an evolved xCAN. Moreover, the circuitry has similarities with the desktop all-in-one iFi Neo iDSD (reviewed here).

So, the Gryphon appears to be a mish-mash of several past and present iFi products and seem to have taken the best bits from them, at least on paper. Let’s see if the real-world performance stacks up accordingly.

Note: the ratings given will be subjective to the price tier. iFi Audio was kind enough to send me the xDSD Gryphon as a loaner via WOD Audio.
This review originally appeared on
Audioreviews.

Earphones/Headphones used: Dunu Zen, Earsonics ONYX, Campfire Audio Holocene, Sennheiser HD650, ZMF Atrium, Final Sonorous III.
Firmware versions: 1.45

Price, while reviewed: 600 euros. Can be bought from WOD Audio.

PACKAGING AND ACCESSORIES

iFi Audio went for a minimalist package with the Gryphon. You get the essentials: a USB type-C to type-C cable (for connecting to phones), a USB type-C to lightning cable (for connecting with iPhones), and a type-C to USB type-A cable for charging. Alongside, you also get a felt carrying pouch.

BUILD QUALITY

Build quality of the xDSD Gryphon is excellent. The housing is sandblasted aluminum with a wavy pattern on top. The volume pot is also color-matched and has distinct “steps” when rotated.



There are two buttons on the right side of the volume pot (xBass II/xSpace switch, and input selector respectively) and two headphone outputs on the left side (4.4mm balanced and 3.5mm single-ended). The volume pot has good feedback when rotated but the press feedback is a bit mushy.



The bottom of the device is extremely busy. From the left, first up is the XBass II adjusting switch. You can tweak the sound of the bass boost or the stage expansion here. Then, there are two type-C ports, one for charging and another for connecting to external devices. Underneath the charging port is a charge indicator LED.



Next to that is the coaxial/optical input, which is rare to find in device of such class nowadays. Finally, there are the 4.4mm and 3.5mm analog input/line-output. It is a variable line-out, which means voltage needs to be adjusted via the volume pot. You can use the Gryphon as a standalone DAC and pre-amp if needed.

The volume pot also acts as a power button and has an LED on top to indicate a range of SPLs (Sound Pressure Level). Another LED on the side also shows the current sample rate and file format. The following image shows all the colors and their corresponding sample rate or format.



Engaging either xBass II or PowerMatch lights up the tiny white LEDs beside the button. At the bottom there is the IEMatch switch that can select between the single-ended or balanced output. Finally, at the top faceplate resides the SilentLine OLED display which can be used to modify settings and cycle between inputs etc.

Overall, excellent build quality with no noticeable room for improvement.

HANDLING

The xDSD Gryphon, at 215 g, is not too substantial in terms of weight. However, due to the 75mm width can be awkward to hold in hand. This becomes more noticeable when you’re stacking the DAC/Amp with a large phone (most modern phones are large anyway).

As a result, I preferred to use the Gryphon with my laptop in wired mode, and while on-the-go, I paired via Bluetooth with my phone. Fortunately, the aluminium chassis provides decent amount of grip, so stacking is possible.

BATTERY LIFE

Clocking at around 8hrs of playback time, the battery life on the Gryphon is decent if unremarkable. This figure goes down further if you drive high impedance dynamics or use it over BT for long periods.

The 3600mAh battery pack could have been increased for higher playback times, but then the device would become thicker. Recharging takes about 5 hours on a typical phone charger, which is extremely high. I wish iFi employed a fast charging circuit because this recharge time means you can’t just quickly top it off once the battery empties.

INTERNAL HARDWARE

iFi Audio are most comfortable with using the BurrBrown chipset and here it appears again on the xDSD Gryphon. This is the same DAC chip that appears in the flagship Pro iDSD Signature (albeit in a quad-DAC config). The BB DSD1793 chipset offers native DSD encoding and with the updated XMOS controller can now decode MQA files at a hardware level. This feature, admittedly, is of little use to non-TIdal HiFi users but it doesn’t hurt to have an extra feature.

The potentiometer is fully analog, thus not facing some of the limitations that digital potentiometers may have. However, being analog in nature, it may degrade over time. The switches used are all from ALPS, . The amp sections remains unchanged on paper, with quad JFET OV4627 op-amps (customized for iFi Audio). The amp circuit also uses a dual-mono design for the balanced output.



Other extras include the xBass feature which is an analog EQ and mostly aims to “fix” the sub-bass roll-off issue on open-back headphones. In reality, many open-back headphones suffer from distortion in those regions and applying an EQ might cause further distortion and clipping. The other feature is the iEMatch switch that adds additional resistance to the signal path for highly sensitive IEMs, blocking hiss in the process.

As for the xSpace, it adds a sense of space to the sound that doesn’t sound artificial or overdone. I found the implementation to be tasteful with IEMs especially so give that one a try. The BT5.1 is one of the highlights of the product and has LDAC support. iFi also uses a new proprietary PureWave topology where they go for a dual-mono setup with shorter signal paths than their previous designs.

Speaking of power outputs, the xDSD Gryphon outputs 1W @ 32ohms from the balanced out and 320mW @ 32ohms from the single-ended output (which also supports their proprietary S-balanced tech). The voltage swing can go as high as 6.7Vrms from the balanced out (with a 600ohm load) and this comes handy when driving high impedance dynamic driver headphones. Output impedance is lower than 1ohm on both (with IEMatch turned off).



The internal components are all high quality as expected. TDK/Murata/Panasonic/Kemet caps, and FET-based switching to mute those annoying “pops” you encounter on some DAC/Amps. The PCB design is excellent and the components are high quality so I have no qualms about the internals of the Gryphon.

TONALITY AND TECHNICALITIES

The general sound of the iFi xDSD Gryphon can be summarized as warm-neutral. It has the characteristic iFi Audio warmth with smooth treble and an engaging, transparent midrange. The bass is mostly neutral but can be pushed higher with the xBass switch. Depending on the xBass mode, the bass can sound atmospheric (with slight bloom and reverb) or mostly focus on increasing punch and slam.

Staging and imaging is excellent on the xDSD Gryphon. No, they won’t rival their desk counterparts, but given the portability it is better than most DAPs in this range. Treble also doesn’t exhibit the rather common “glare” you find in many dongles these days. There is a sense of naturalness to the signature that can be addicting. Despite this slight laid-back delivery, the Gryphon is very resolving, bringing out subtle nuances from tracks and doing justice to flagship IEMs with their detail retrieval capacity.

One thing to note is that changing the firmware can bring subtle changes to the sound due to changes in reconstruction filter. I used both the GTO and non-GTO firmwares. The latter had a more laid-back treble and had a slightly wider stage, while the former had slightly more up-front mids and more macrodynamic punch. Biggest difference happens with MQA files on the GTO firmware, so if you are using Tidal, this is the recommended one.

Overall transparency and resolution was very good, with no noticeable roll-off in the upper-treble frequencies. Separation was very good as well, though the likes of Chord Mojo2 does that better. The background hiss with sensitive IEMs is also not distracting, as once the music starts playing you don’t even notice it. Moreover, there is IEMatch to take care of hiss, though that tends to modify the frequency response of some multi-BA IEMs so keep that in mind.

PAIRING NOTES

Sennheiser HD650

The Sennheiser HD650 is one of the few headphones that scale according to the source quality. On paper, the xDSD Gryphon has the required voltage swing to power it, and it does sound good. The HD650 got loud from the balanced out and had some of the dynamics it can display on a more powerful amp. Separation was good as well.

However, you still don’t quite get the “magic” that happens when you connect the HD650 to OTL amps like Feliks Euforia. Granted, that thing is a behemoth and costs over 3 grands. For the size and price, I think the Gryphon did a good job with the HD650, but those headphones can scale higher.

Final Sonorous III

Final Sonorous III is a closed back pair of headphones and are very efficient. Despite the efficiency they are quite transparent to source quality. The Gryphon drove them excellently with no loss in dynamics and the bass was quite pleasant. The mids were transparent, with no evident peaks in the upper mids that tends to creep up on some sources.

I would call the xDSD Gryphon an excellent pairing for efficient dynamic driver headphones.

ZMF Atrium

The ZMF Atrium is a similarly high impedance dynamic driver as the HD650. Their pairing with the Gryphon was surprisingly good. I got great separation, the bass was not loose and had good amount of punch, and the staging was excellent.

The Atrium can scale much higher (with the aforementioned Feliks Euforia for example) but for portable use, the Gryphon are absolutely adequate. Just make sure you use the balanced out.



Hifiman HE-6se V2

On the planar magnetic side, we have the Hifiman HE-6se V2. With 82dB @ 50 ohms efficiency, these are one of the hardest to drive headphones in the entire planet. The Gryphon failed to get them loud enough to be enjoyable, even from the balanced output. These headphones are notorious for bringing amps to their knees and sadly xDSD Gryphon isn’t designed for such workloads.



Dunu Zen and Dunu Zen Pro

The Dunu Zen and Zen Pro both exhibited slight hiss from the balanced out of the xDSD Gryphon. However, the overall sound was quite pleasant. The pairing was very resolving without being “on-your-face”. I especially liked how the Gryphon took some edge off of the OG Zen, which can be a bit peaky near the upper-mids.

In general, the xDSD Gryphon pairs really well with most if not all IEMs. The warm-neutral yet transparent signature complements somewhat analytical headphones and even works well with warmer sounding gear. On the other hand, I would not recommend it for power-hungry planar magnetic headphones, or very high impedance dynamic driver headphones due to the relatively lower voltage swing.

Zen Pro - Cover 2.jpg


SELECT COMPARISONS

vs iFi micro iDSD Signature

The micro iDSD Signature (reviewed here by Alberto) is priced slightly higher than the xDSD Gryphon, but has a much more powerful amp section and a Dual-DAC implementation.

In terms of physical appearance and handling, the iDSD Signature is noticeably larger and heavier. It’s also more of a transportable DAC-Amp than a portable one. The xBass implementation on the Gryphon is better and offers more fine-tuning. The display is also handy.

Meanwhile, the micro iDSD can replace some desktop amps with the incredible 4W @ 16ohms output. This one is meant to drive full-size cans and apart from the likes of Hifiman HE-6se V2 and Abyss 1266TC, it can drive most headphones including some planars.

On the other hand, the Gryphon offers more flexible connectivity and pairs better with IEMs, which are easily over-driven by the micro iDSD Signature. Background hiss was also comparatively lower on the xDSD Gryphon. Soundwise, the micro iDSD Signature goes for a meatier, denser presentation, whereas Gryphon has better clarity and somewhat laid-back signature.

In short: if your primary use-case is IEMs, then go for the Gryphon. It’s more portable, easier to pair with phones, and there is lower chance of over-driving the earphones. For headphone usage the micro iDSD will be a better fit.



CONCLUDING REMARKS

The iFi xDSD Gryphon offers a lot of bells and whistles, and in a sense is more versatile than their desktop DAC-Amp, the Neo iDSD. iFi managed to miniaturize the circuitry in a pocket form, while offering the same output power. That’s remarkable indeed. I wish the Gryphon offered a fixed-voltage line-out but that’s a minor nitpick.

The biggest gripe, for me, would be the slow recharge time. For such a moderate-capacity battery I expected lower recharge time. I had to charge the Gryphon every 3 days during review, and if I forgot to charge it overnight then I couldn’t take it out during commute. Bummer.

Nonetheless, those looking for a battery-powered DAC/Amp for all-purpose use via BT or USB, the xDSD Gryphon is pretty much one of the best under $1000. You do not get absolute output power for headphones, but you get excellent transparency in the sound and fantastic pairing with IEMs irrespective of tuning of driver config. Recommended.

Ichos

Reviewer at hxosplus
Mythical
Pros: + Neutral, transparent and accurate
+ Natural and musical sounding timbre
+ Dead silent
+ Great technicalities
+ Clear and resolving
+ Plenty of power for a portable device
+ Various sound enhancements
+ OLED screen
+ Multitude of inputs and outputs
+ Excellent Bluetooth implementation with minimal sound loss
+ Separate USB charging port
+ Compact and lightweight
Cons: - Average battery life
- A protective case is missing
- Some buttons feel loose
The Gryphon was kindly loaned to me in exchange for a honest review.
The review was originally featured in hxosplus printed edition and website.
This is the translated and adapted version for Head-Fi.

iFi Gryphon

Griffin, the legendary creature with the body, tail, and back legs of a lion but the head and wings of an eagle.
Yes, you read that right, this is still an audio review, the subject is the new iFi portable DAC / amp with the emblematic name xDSD Gryphon, which aspires to combine the best elements of the two previous models xDSD and xCan in a slightly only larger chassis.
It is a compact, lightweight battery-powered device that combines a high resolution digital converter with a powerful balanced topology headphone amplifier.



Technical highlights

IFi uses a Burr-Brown Hybrid MultiBit chip, the same one found on the flagship Pro iDSD Signature, which acts both as a digital converter and a signal receiver.
A global master clock is used to greatly minimize jitter.
Thanks to the Burr-Brown chip's four-channel True Native design, PCM and DSD follow separate paths.
The xDSD Gryphon uses an amplification circuit called PureWave, it is a balanced, symmetrical dual-mono topology with short, direct signal paths.
Maximum power output is 1,000mW at 32 Ohms and a whopping max 6.7v output to drive high impedance headphones with ease.
The automatic "turbo" function adds +6dB in addition to the maximum output level, greatly increasing Gryphon's ability to drive difficult loads, making it one of the most powerful, battery powered, DAC/amps in the market.
Furthermore iFi engineers recognised that different parts of a circuit benefit from specifically optimised feedback loops and have developed a negative feedback system that is much more accurate than the usual approach.
This incorporates multiple feedback paths instead of a global loop, each path optimised for a particular function and working synergistically with the others to deliver optimal overall performance.
The amplifier section is essentially the same as the one found in iFi's portable flagship, the Diablo, with the only difference being the lower output power due to the smaller size of the power supply.



The volume control

A multifunction button is used to adjust the volume and navigate through the various menus.
iFi uses for the first time a software-driven volume control, called CyberSync, that operates in the analogue domain and the way it synchronises with any digital source to which the xDSD Gryphon is connected is very different.
It provides perfect volume synchronisation between the source and the DAC.
It detects which operating system (OS) the DAC is connected to – iOS, Android, Windows, Mac OS or Linux – and instructs the source’s OS to bypass its software volume control. Whether volume is adjusted using the xDSD Gryphon’s rotary control or on the source device, CyberSync ensures the change is performed purely by the Gryphon’s superior analogue control chip, while also displaying the adjustment on the source device’s screen.
Volume curves differ between operating systems and apps, but CyberSync ensures perfect synchronisation between the source device and the DAC every time.
A very handy feature is that the multifunction button is illuminated by a LED that changes color depending on volume level so you can instantly know the setting in order to protect more sensitive earphones from accidents.



OLED screen

The Gryphon is the first portable DAC/amp from iFi, to use an OLED screen for easier navigation through the system menus.
This is not a simple OLED screen though, it is a SilentLine design which ensures that there is no electrical noise to interfere with the audio signal.
The way its switches between settings has been engineered to ensure sonic transparency – FET-based switching is handled by a microcontroller, which only ‘wakes up’ when the user changes a setting, thus eradicating any sonically deleterious interference.



Tailor your sound

The Gryphon incorporates the following, exclusive iFi technologies that offer fine tuning to the sound.

XSpace adds back the cavernous sound stage of recordings.
XBass II reinstates the missing bass from open-backed headphones or for recordings that you hanker for bass slam.
You can select these two options by the means of a button that is located in front of the unit.
Under XBass II you can select ‘Bass’ and/or ‘Presence’ so that the upper midrange frequencies are correctly added back into your favourite recording.
This is done with a handy switch that is located at the back corner of the chassis.
iEMatch – is a proprietary tech which reduces the annoying hiss from high-sensitivity headphones without losing any dynamic range.
The option is available for both the headphone outputs and can be selected through a switch that lies underneath the chassis.
With digital sources, users can choose between three bespoke digital filters via the on-screen menu: Bit-Perfect without signal processing, Standard which is a simple low pass filter and GTO (Gibbs Transient Optimised) that does upsampling to 384/352kHz, each having a fine-tuning effect on sound.



I/O interface

Gryphon is a swiss army knife with a variety of inputs and outputs both analog and digital.
The user can choose between the wired USB type C and S/PDIF digital inputs or go wireless thanks for the Bluetooth 5.1 Qualcomm QCC5100 chip that supports all known codecs, from the legacy SBC to the high resolution aptX Adaptive, aptX HD,
LDAC and HWA/LHDC as well as multipoint coupling.
All digital inputs are housed in the back of the chassis together with the USB type C charging port.
The Gryphon has a separate USB type C port exclusively for charging its battery which allows it to be connected via USB while charging at the same time to accommodate for long term desktop use.
The USB digital input is compatible both with PCs and all types of tablets and mobile phones.
Sampling rates up to 768kHz / 32bit, DSD512, DXD768 are supported with full MQA decoding, while Bluetooth reaches up to 96kHz.
The Gryphon can also be used as a dedicated headphone amplifier to amplify signals through the two analog inputs (4.4mm and 3.5mm) that are located in the back of the chassis.
Input selection is done with a button that is located in the right corner of the front face.
At the left of the front face there are the balanced (4.4mm) and single ended (3.5mm) headphone outputs that can also be configured to act as dedicated line outputs with variable level.
The 3.5mm headphone output is supported by iFi's unique S-Balanced technology which delivers the benefits of the balanced connection to single-ended headphones.



Build quality and appearance

iFi has managed to accommodate all that tech inside a chassis that is just slightly longer and thicker than the xDSD and the xCAN, a pretty novel achievement.
The compact body measures 123x75x19mm and weighs only 215g making the Gryphon your perfect travel companion while you can also accommodate it in a larger pocket.
The chassis fits in the palm of your hand and operation can be done one handed, thanks to the handy function shortcuts that can be performed by the means of the two press buttons and the rotary switch.
The all metal body has a beautiful and modern looking wave pattern while build quality is excellent.

Accessories

The Gryphon comes bundled with three beautiful looking, good quality but rather short cables, a USB type C to C, a USB type C to type A and a USB type C to lighting connector.
A nice carrying pouch completes the package but a protective case should have been a nice addition.



Listening impressions

As per usual practice, the unit was left playing music for 150 hours before listening to music.
iFi was generous enough to allow for an extended loan so I was able to have my time with Gryphon rather than doing a hasty review.
Various earphones and headphones where used, like the FiiO FD7, FiiO FH9, Focal Clear Mg, Sennheiser HD8XX, Sennheiser HD660S, HiFiMan Sundara and many others.



The Gryphon is dead silent and with the aid of the iEMatch is especially suitable for use with sensitive earphones while at the same time there is enough power for driving the majority of the full sized headphones without any distortion.
This makes the Gryphon extremely flexible and can be used both as your high end portable source and a desktop replacement at home.

As expected, the powerful amplifier and all the advanced electronic circuits have an impact on the battery life, which due to its small size has a rather limited capacity, thus offering an operating time of about six hours.

The sound is, without a single trace of exaggeration, excellent as it lacks absolutely nothing and it really became impossible to find anything negative of blame, considering of course the type of device and the price point.
A unique combination of transparency, precision and fidelity with an involving and highly musical imprint with the usual iFi naturalness of timbre and a diverse range of harmonic richness.
Visceral, deep and impactful bass with excellent layering, absolute control and great dynamic antithesis.
Rich and emotionally engaging mid-range with the most realistic tonality, instruments and voices sound lifelike and tonally correct.
Crystalline, sparkling and extended treble presentation without a hint of brightness or aggressiveness , the Gryphon is highly resolving without sounding analytical or artificial.
What is remarkable for a battery powered device is the supreme recreation of the soundstage which is extended, spacious, layered, with pinpoint imaging and great proportions, especially from the balanced output.
So if you have an earphone with good soundstaging properties then with the aid of Gryphon you are going to experience an utterly holographic sound with great ambience as I did when listening to the following French baroque album.



After trying all three digital filters, "bit perfect" became my favorite one.
The least intrusive of the three, lets the sound, without any digital manipulation, transform into wonderful music that evokes the senses and rewards the listener with great moments of pleasure.

The Gryphon may not reach the absolute technical perfection and driving ability of the Diablo but it manages to be very close while having the advantages of the smaller size and weight, much lower price and extra functions such as the bluetooth connectivity and the handy OLED screen.

Bluetooth performance

Speaking of bluetooth, it's probably the best implementation I have come across so far, in a portable device, with minimal sound quality losses.
The Bluetooth mode on the Gryphon is absolutely stellar and while the wired connection is definitely better and should be preferred when possible, the wireless performance is so good that you are not going to miss much when you need it, just make sure to use LDAC.
The Bluetooth is one of the strongest selling points of the Gryphon and it would have been just fine even if it was only wireless.

In the end

Eventually the iFi experiment was a successful one.
The xDSD and xCan were merged into one, the mighty Gryphon which is not the Frankenstein but instead a divine and majestic creature that commands the powers of music.
With the Gryphon, iFi is writing the story from the beginning, redefining the portable DAC/amp category and putting itself at the top of the list with a price to performance ratio that its competitors will have to work very hard in order to overcome.

Test playlist

Copyright - Petros Laskis 2022.
Ichos
Ichos
Thank you Alexey!
revand
revand
You can read my comparison of the iFi xDSD Gryphon and EarMen Colibri on my Hungarian blog here.
Use Google Translate to read it in English.
My opinion:
The Gryphon is excellent sounding device!
Great soundstage, very smooth and natural timber.
Best genres are classical, country, pop, blues, jazz.
Huge amount of functions, great wireless playback with LDAC.
The only issue was that switching on the device the volume is too high (ear deafening!)
Always check the volume level before listening music with your headphones!
Ichos
Ichos
Have you updated to the latest firmware?
Switching my unit ON the volume was the last setting used.
I also have the Colibri but I am not ready to post my review.

Another Audiophile

500+ Head-Fier
The Benchmark.
Pros: Versatility, Connectivity, Power,
Cons: I need to think of any Cons and probably invent some. So what's the point?
The @iFi audio XDSD Gryphon Vs the Chord Mojo 2 is the most anticipated and requested review. I bought the chord Mojo 2, Poly and the original Mojo at full retail price. The gryphon was sent to me for review by Ifi Audio. All thoughts and opinions are of my own.




To begin with, the Gryphon is well packaged and is more luxurious compared to the the mojo 2 packaging. The Gryphon comes with all essential accessories and especially cables. You get a carrying bag, which I’ve been using a lot, and 3 cables for iPhone, android and computer. The cables are on the stiff side but better than nothing. The Mojo 2 comes with a short micro USB cable. Fro iphone,desktop computer and USB-C devices you will need extra cables and/or extensions.





I would like to approach this comparison and review by sharing my experience with the units rather a robotic progression with bass, mids, treble, stage etc. After all, and in my experience, this kind of devices will not give you a “day and night” difference. I truly believe that features are equally, and sometimes more important. If you are interested on specs, battery life and other public information please visit the company’s website.




In terms of features the Ifi Gryphon is not just a winner. Is on a different level, but the price is also different with the Gryphon at £599 and the Mojo 2 at £450. So what do you get for almost £150 more? Well, a bit more than a lot. The mojo 2 offers 3.5 coax input, usb-c and micro data port, along with the usb micro for charging and an optical input. For analog out the mojo has 2x3.5mm headphone jacks that can be used simultaneously and at certain volume level it can be used to feed integrated amplifiers or a preamp. From the other hand the Gryphon offers 3.5mm and 4.4mm balanced headphone output, SPDIF 3.5mm Coaxial/optical inputs, USB-C data and separate USB-C charging port, 3.5mm input/output and 4.4mm balanced input/output. I can finally have one connector which is the 4.4mm balanced. In my opinion that should be the one and only universal connection for headphones. Along with several sound and matching adjustments, it comes with a screen for playback, battery, and menu info. Last but not least the gryphon has bluetooth and we will come to that. To put it mildly, the gryphon is the most versatile portable, transportable DAC and headphone amplifier I’ve ever came across. It can be a DAC, a headphone amp, a preamp for active speakers, an amplifier only for headphones or speakers and all these conditions in a small package that you can easily put in your pocket. The only issue I came across with the Gryphon’s features was the way the volume was controlled. The Volume was in sync with the mobile’s volume buttons. That meant the volume would go up and down either by using the volume knob or the mobile’s buttons. You understand that the first thing I did was to turn up the volume in my mobile and adjust the volume from the Gryphon. That was a big mistake… nevertheless the issue has been fixed with the latest firmware uptake and now you have the option to have the volume in sync or only controlled by the Gryphon’s rotary knob. That’s what I have been doing with the mobile at max and adjusting the volume with the Gryphon’s knob. The problem I came across when using the Mojo 2 was interference when bundled with my mobile. Every time my mobile would connect or change from 3G to 4G network I would get clicks and pops. I am not an expert but that killed the mojo2 as a portable device and is not a faulty device. I owned 3 original Mojos and all had the same issue. My conclusion on that front is that if you want the mojo 2 then you might consider the poly as an essential part.I own the poly and would never take the mojo 2 out and about without it. With the poly the price doubles.





Build quality also is distinctively different. The Gryphon feels solid with enough weight to hold on your desk but light enough to carry it around. Assembly, fit and finish are exceptional. The Chord Mojo 2 has a smaller form factor which makes it more manageable. Nevertheless, the Mojo 2 rattles and the finish is not as good as the Gryphon. The assembly gaps are large enough to see the lights and the board inside the mojo. From that front it looks objectively that Ifi has payed more attention to quality control.





But how it sounds? Well, first of all it in NOT a day and night difference. After extensive listening with both units on the go and at home I came across the simplest way to put it forward. The Gryphon sounds like the mojo 2 with crossfeed two clicks up. Is not a question of better but different. I am sorry but to my ears it is not a huge difference and certainly not a difference you will realise if you are using the equipment to listen to music rather than comparing one to each other. The difference is minimal and the mojo 2 might come across with instruments placed more accurately in the soundstage while the gryphon has more focused and centred image which makes it for slightly more relaxed and intimate presentation. Personally I like more the presentation from the Gryphon but I can see why some might prefer the mojo 2. The X-bass had too much bass for me and didn’t use it a lot.

From the other hand X-space adds perceived clarity and defines better the space between interments and vocals. In contrast, it Sounds like the mojo with reduced corssfeed. I used several headphones and IEMs which will be listed at the end. The Gryphon is more versatile in terms of headphones and IEMs it can drive. The higher output voltage made it a better match for high impedance headphones and the impedance adjustment made it an excellent fit for IEMs. In comparison the mojo 2 didn’t offer the power and authority the Gryphon had over high impedance headphones. Consequently, the gryphon is not just a great portable device but a device that can be used as a desktop unit with ease. When the units are used as DACs on my main system then there was a clear difference between the two. The Chord mojo 2 offered a deeper perceived soundstage. What I mean is that the image had better defined depth. The Gryphon had depth but it was blurry in comparison. For example if the singer was recorded two meters from the guitar then this distance will be easier perceived with the Mojo in a two-channel system. From the other hand it didn’t mind so much if at all when used as a portable devices with headphones. That was the clear difference between the two and again not a day and night difference especially with modern recording where “depth” is not part of the mixing, or at least not a top priority.

I believe the most underrated feature from both sound quality and usability is the bluetooth offered by the Gryphon. I was on my way to the office with the mobile bundled. All good and nice without any complain. At the office I had to charge my iPhone and had to disconnect the usb cable. I thought, lets use the bluetooth instead. Not only I was able to use the device, unlike the mojo 2, but I was happily surprised with the sound quality coming out of the bluetooth connection. I know that some, me included, would think the bluetooth as the anti-christ. But really, I dint get the glare or harshness i experienced from past bluetooth devices. It is actually so good that the compromise, if any, is so minimal that it take an effort to realise the difference. Personally I prefer to listen music instead of comparing equipment. As a result I really didn’t feel that my music enjoyment is compromised by using the bluetooth connection. That happened 2 weeks on my review and have been using the bluetooth connection exclusively when out and about. After all is what makes me listen to music and the Gryphon perfectly gets out of the way. My comparison with the mojo as a portable device can be done only when paired with the poly due to the mentioned interference issues with 3G and 4G. If you need a portable device when you are out and you are between the Mojo 2 and the Ifi Gryphon then i don’t think there is a comparison. One works and the other kind of works.

To give Mojo 2 some credit and to be fair I would say the most underrated feature for the Mojo 2 is the EQ adjustments. This is not a review for the Mojo 2 but the Original mojo was one sounding device and the Mojo 2 is a sounding chameleon. The gryphon is more conservative with limited number of options in terms of tailoring the sound signature. As a desktop unit I have been using both with my active speakers. From my experience the difference in sound quality is not significant to justify buying one over the other. Again are not exactly the same but slightly different. The Gryphon offers more centred image with a bit warmer tone. The mojo is sharper and brighter in comparison. Not day and night but there are slight differences which you have to pay attention if you want to pin them down. From features again the gryphon is a more versatile device. Can do all the things the Mojo 2 can do and more. I found again the availability of bluetooth really useful especially when I am using the devise to watch movies, TV shows and Youtube videos. I used it also with an external DAC but didn’t make a difference. Nevertheless, the option is there. In comparison, the Mojo 2 has a great feature. Once fully charged it goes to desktop mode which preserves and protects the battery. Basically you can leave it connected forever and you don’t have to worry about it.





My Conclusion is simple. Today I need a device that I will actually use and will do the job. I want to enjoy music and make the most out of a device. If you are after a portable device the Gryphon wins in any front and the perceived sound difference is not a question of better but slightly different. To be frank and honest the only use case I can think of the Mojo 2, without the poly, is as a desktop DAC in a main 2-channel stereo system. Not so much because of the sound quality but the “desktop mode” powering feature. I admit though that the soundstage depth offered by the mojo 2 is something to comment upon. The Gryphon is a powerful device with the versatility you would expect from a modern device. The Mojo 2 is a good device but nonetheless a device from yesterday. The Gryphon is a device for audiophiles, like myself, and normal people. You know, most of my friends didn’t even understand what the Mojo 2 is and why they should be using it. All of them said the same thing “you need cables?”. The Gryphon was easier to understand and even my mother could use it. Just bluetooth an play. My point is that the Gryphon has the potential to bring more people into the hobby and we shouldn’t underestimate this quality. The Mojo 2 is a more intimidating device and I can’t see how this unit will bring more people. As a closing though, and in comparison, the Ifi Gryphon is a device from tomorrow made today. The Benchmark.

Thank you for Reading

AA

Equipment used

Headphones:
Sennheiser/Drop HD6XX (My Reference)
Sennheiser HD800S (Classical, Acoustic, Jazz)
Sennheiser HD25(On the go, undistractable, great Isolation with punchy sound)
Grado SR80e (Used for calls, video conferences and podcasts)
ZMF Aeolus Cocobolo (Hot chocolate kind of headphones)
Audeze LCD-MX4 (Dynamic, Powerful and Visceral sound. Pop, EDM, Electronica, Techno)
Audeze LCD-X (2020) (I am still figuring this out)

IEMs:
Sony IER-Z1R (My Reference)
Fiio FH5 (it works with nice bass)
Blon BL-03 (it works)

Comparisons:

Chord Mojo
Chord Mojo 2
Both used alone and with the Chord Poly streamer.

Music Used:
  1. Melanie De Biasio - Your Freedom is the End of Me
  2. Hans Zimmer - Mountains
  3. Gillian Welch - The Way it Goes
  4. Florence & The Machine - Ship to Wreck
  5. Dire Straits - Water of Love
  6. Antonio Vivaldi - Winter Concerto in F minor
  7. Tchaikovsky - Swan Lake, Swan Theme
  8. Biig Piig - Roses and Gold
  9. Amber Rubarth - Hold On
  10. Billie Eilish - Everything I wanted
  11. Metallica - Enter Sandman
  12. Led Zeppelin - Ramble on
  13. Beyonce - Daddy Lessons
  14. Kenny Burrell - Chitlins Con Carne
  15. Dave Brubeck - Take Five
  16. Air - Talisman
  17. Bombino - Iyat Na Hay
  18. GoGo Penguin - Totem
  19. Hans Theessink - St. James Infirmary

Attachments

  • IMG_8386.jpg
    84.1 KB · Views: 0
Last edited:
lollorenzo
lollorenzo
Finally I take the Gryphon... very happy! Also balanced cable from Audiocable (Greece).
Thanks for helping me! 😀



Just a question: I try to connect the Gryphon to iPhone via original Apple lightning - usb c cable but the device doesn't works... With iFi mini cable it's ok. Do I need a specific lightning - usb c cable?
Another Audiophile
Another Audiophile
Yes, you will nee the apple camera adapter or the one I am using is the FIIO LT-LT1 USB Type-C to Lightning Data Cable
lollorenzo
lollorenzo
Today I build a headphone stand in cedar wood...

  • Like
Reactions: Hyde00

ufospls2

Headphoneus Supremus
iFi xDSD Gryphon
Pros: Vast functionality
Sound
Cons: Not much really, in the context of a complete portable.

Hey Guys,

Today we are talking about a new piece of gear from iFi Audio. Its no secret I enjoy iFi’s gear, but the XDSD line (original XDSD and XCAN) are two pieces I have never heard. The “X” series is iFi’s more portable line of source equipment and amps, vs the regular iDSD series (which I have heard and reviewed in the past.) The original XDSD was an all in one portable DAC/Amp combo, and the XCAN was primarily an amp for use with the XDSD, but it also had DAC/Amp capabilities, but only via bluetooth. The XDSD, whilst being slightly larger than the original XDSD line, aims to combine the two previous products, whilst also adding a few features and increasing the sound quality. Whilst the $600USD retail price of the new XDSD Gryphon is not insignificant, I think it is reasonable given the feature set, and sound quality.

The first thing we have to talk about are the capabilities of the Gryphon. I will do my best not to forget anything, as it is extensive. First off, inputs. The Gryphon can take USB-C, either separated into power and data inputs, or used combined on one input. It can also take SPDIF via a 3.5mm mini connector, and I think this also takes a mini optical input as a dual use input. The third digital input is the bluetooth input, which is capable of taking all current popular codecs. Lastly, there are both 4.4mm balanced and 3.5mm single ended analog inputs to use the XDSD as an amp only.

Secondly are the outputs. On the front of the device there are 3.5mm “S-Balanced” and 4.4mm balanced outputs. The 3.5mm and 4.4mm inputs on the rear of the device are also dual use, to be used as line outputs as a DAC into whichever amp you please.


On the right hand side of the front of the Gryphon are the bluetooth/input selector, and the “Xspace” and “XBASS” selectors. This button can also be used to access the main menu of the device for setting your preference of filter etc…There are three settings for the Xspace and XBass features, either on, or both on. On the rear of the device, you can also choose if you want to bass setting to only boost bass, the 3000Khz “presence” region, or both. On the bottom of the unit is iFi’s “IEMatch” option, for easy to drive IEM’s, reducing hiss.

The feature set is the most extensive I have seen or tried on any piece of portable gear thus far. The fact the Gryphon manages this, whilst also providing a solid max power output, and decent battery life, whilst also not being huge, is honestly pretty remarkable. Now, all of that doesn’t matter if the Gryphon doesn’t sound good. Thankfully, it does.

In terms of overall tonal balance and “sound” I would say the Gryphon tends to be more similar to the iDSD Diablo flagship portable from iFi vs perhaps the iDSD Black label, or the original silver Micro series gear from iFi. This means the tonal balance is a bit less warm and smooth, and more focused on detail and a neutral sonic performance. I have no problems with this, and although years ago I tended to prefer warmer gear, I have slowly moved towards preferring more neutral gear. Sonic preferences, like most things, can change with time.


Now, as a pure DAC, using either the 3.5mm or 4.4mm output, the Gryphon performed in a solid manner. I don’t think it was as good as the iDSD Diablo, trailing slightly in terms of technical performance and resolution, but it was also a step up from the ZenDAC I reviewed about a year ago. In terms of using the Gryphon single ended or balanced, if you can, I would go balanced. The Gryphon does seem to perform better from its balanced outputs, either the headphone amp section or the DAC section. I never found the Gryphon bright or sharp sounding, which is something I notice fairly quickly usually if it is present. The overall detail levels, both micro and macro, whilst not groundbreaking, are totally in line with the price point.

Used as an all in one DAC/Amp is where the Gryphon shines in my opinion. It has a fairly healthy Max output of 1W at 32 ohms from the 4.4mm output, and can drive easy to medium difficulty headphones well. For hard to drive headphones I would recommend iFi’s iDSD Signature, and iDSD Diablo, as they will drive them in a much more convincing manner. Again, overall tonal balance is fairly neutral but I do think the amp section is perhaps adding a tiny bit warmth and overall fullness vs the DAC only section. I could be wrong in that thought, but that was what I felt I was hearing a few times. The Xspace setting is similar to the 3D crossfeed on other iFi pieces of gear, and I feel it works great on some tracks, less so on others. It will be entirely personal preference, so experiment with it and see what you personally enjoy. A word of caution, it can increase the upper mids and highs somewhat, so will make things a bit brighter. The Xbass setting is a tasteful boost, and if I wasn’t using software EQ on my computer would use it with a lot of headphones. I like a robust low end however, so again, try it out and see how you feel about it personally. Again, overall detail levels, both micro and macro are entirely in line with the asking price for the Gryphon, but nothing groundbreaking. The amp seemed to do soundstaging quite well and portrayed a nice sense of depth and width. Dynamic swings were handled in a convincing and capable manner. I do think with something like the Susvara it was running out of juice and didn’t have a convincing low end performance, but one can hardly expect the Gryphon to do so, that’s not what it is designed and built to do.

I never ended up using the Gryphon as an AMP only, as I didn’t feel I had a DAC that would be worth trying out in that capacity.

For input choice I usually ended up using the USB C input combined into one input for Data and charging. This made things a lot simpler and easy for connecting my laptop. If you are a purist, I could certainly understanding using the separate inputs, or the SPDIF input if your source has a SPIDIF output. I also used the bluetooth input extensively from my phone and laptop. Both performed well using APTXHD, and AAC. I do think the overall sound quality is still better wired, but the bluetooth was entirely usable and I would recommend it if you need less clutter and cables. Battery life was always a solid 6 hours or more, depending on what you were doing. If you are driving hard to drive headphones loudly, it will be shorter. DAC only mode will likely get about 8 hours, perhaps slightly less.

In terms of direct comparison as a DAC/Amp, I had a Fiio Q3mk2 on hand, which is much more comparable to the iFi Hip DAC V2. However, I figured it would provide a useful A/B test so gave it a go. The Fiio was a bit sharper in the highs, and sounded sort of claustrophobic in comparison. The Gryphon was an overall much more enjoyable listen in terms of tonal balance (less bright) and also had much more accomplished sound staging abilities in particular. The Fiio sounded sort of flat and lacking depth, and the Gryphon definitely improved on those areas. With that being said, it is still a $600USD piece of gear, so won’t compete with more expensive desktop gear, but that’s not what it is built to do.

The screen and menu are easy to navigate
In terms of negatives, I think the release of the Gryphon may have been rushed slightly. I didn’t personally have any firmware problems, but in following the discussions on forums, some people were having issues like the volume jumping to the maximum setting if the sample rate of the file changed, blowing their ears off. Not good. There were also some other little problems people were having with the firmware, but thankfully most seem to have been rectified with subsequent updates which are easy to install. If you end up purchasing a Gryphon I would recommend just checking out your firmware quickly and making sure you have the most recently upgraded option. It will make for a smoother experience hopefully.

The front also displays the sample rate of the current sing, via colour.
Overall the Gryphon seems like the logical evolution of the “X” Series from iFi. It takes two pieces of gear, makes them sound better, puts them both in one chassis, and even adds some functionality, whilst not massively increasing the units size. If you don’t need the power and features of the iDSD Diablo/Signature, the Gryphon is iFi’s most complete and comprehensive portable unit yet. It’s like a Hip DAC V2 on steroids mixed with the iDSD Diablo. If you need a portable unit, the Gryphon might be the best option on the market currently, as long as it has enough power for your needs. If you are driving a wide variety IEMs and headphones, or just want a real Swiss Army knife of a source, the Gryphon might be worth a look!
Jimmyblues1959
Jimmyblues1959
Thanks for the informative review! 😀
I
Ieonasj
does Gryphon cam be powered from laptop or only from dc220V?
P
Patukenas
Would it be okay to use the Gryphon as a dac to the Topping A90D? I use my xDSD Gryphon as a mobile solution, but would rather have a dedicated desktop amp for listening at home. I guess I am asking if such a pairing would not be somehow unrecommended.

SenyorC

100+ Head-Fier
In a league of its own
Pros: Build, aesthetics, functionality, SQ and plenty more.
Cons: More than cons, there are "wishes" that I would add but not really complaints.
AVvXsEgRMw7m_nlBP9XYno3B92_8XJuIBZ24tfvY3meo8-3k5ZKZX5M0EWPciKP49t8RJIcLTx1QiX5sYQxXI0E_5cTiWBcSrMuuG7EF9pym_xbxhBpmSXEEl5_REJQNHbgnm3Az45sqgP5ayVzs4luYaSYI6z_XpTHx7e6OiH4ulfcJhYxkLZfE-ChjVjsY=w640-h426


The xDSD Gryphon was very kindly sent to me by iFi Audio for me to try and to post this review. They did not request anything specific, not even the inclusion of links, however, as always in these cases, I will leave the link to the official iFi Audio page below.

I need to add a bit of a spoiler alert as I have already reached out to iFi Audio in order to pay for the Gryphon. This is actually the first time that I have done this. I have had items loaned to me for review that I have purchased at a later date but I have never actually decided to keep the device before I even got to the point of reviewing it.

Anyhow, the official page for the Gryphon can be found here: https://ifi-audio.com/products/xdsd-gryphon/

Intro…

Just as a word of warning, all of my iFi reviews usually turn into long ones, in this case, the Gryphon has so many things going on that it will probably become even longer than usual and even then I may miss something, so forgive me if that is the case.

Before diving into the Gryphon, I want to jump back a year, to March 2021, when I reviewed the iDSD Diablo, a device that changed my opinion of what portable devices can do. Since then, I have been on a search for a device that was close to the Diablo in sound quality but with less power and a few extra options that I found missing on the Diablo for its price point. To be fair, the Diablo is more about hardcore power and SQ, it’s not really something that is built to multifunctional, it is something that is built to run almost any set of headphones you can throw at it while not being tied to a power socket.

In this time I have come across a few devices that I liked, although none of them have been perfect. My favourites (coincidentally the ones that I have actually kept) have been the Aune BU2 and the iFi Go Blu. Both of these devices are very good at what they do but aren’t devices that cover all of my needs. They serve specific functions (which they are very good at) but are not quite versatile enough to be my only portable device.

Basically I want a device that can become my reference setup for testing and reviewing, enabling me to have the same setup at home, in the office and in a hotel room while travelling. Being totally honest, I don’t need the power that the Diablo offers when outside of my home my difficult to drive stuff stays at home, at the side of my full size rig. So, I needed something that would run most headphones, except for very hard to drive models, and IEMs.

This is where the Gryphon comes in. A device that covers all of my needs and then some.

The Gryphon is not perfect, there is always room for improvement, but it is a lot closer to perfection than I thought I would be able to obtain from device of this size.

So, let’s see what makes the Gryphon special and, more importantly, worth its 600€ price tag.

AVvXsEg-fdCkhGSsx5qknGJsvenLkQUb8y-SL-SRfg0JKsN_fjNNoO4zBiaTDSjJzb66NocpzIt4G218tnUlxLo7EuB2xEGosNivIB8pQRXk95SirEQGVK8jA9nTekPdPcTfZRZyld-YLxlJDYHAG_7dFgn9g4n_DjNRzG-Gx6_TuNsle6adxhJsJo3m5SEx=w640-h426


Presentation…

The packaging is the usual iFi Audio standard. Packaging that is simple but elegant and well thought out.

Inside a white box that shows an image of the Gryphon on the cover, along with specs and other details around the outside, we find the Gryphon, a bag to protect it, 3 cables (USB-A to USB-C, USB-C to USB-C and Lightning to USB-C), the usual iFi warranty card and an instruction booklet.

Everything that is needed is included (even for the Apple users) so I will keep this section short and just say that, as always, the iFi presentation is more than adequate.

AVvXsEjDViRs8qlixqf5p_0FqWKJzqvAgdXYL6iIR-CNq12uyWMmTG-SObNfW0ks1Nn55fc12F6ObEz0h0GKPCuttLv7bGaO8NM4bn6lWbDk5L4czT0VScWHyOb_ubrs8edAgBHuJN-HzY2QdH5r08W5OZPfO4YIwPE6yVGW0uWvBos-WragrhHlFuu118hK=w640-h426


Build and aesthetics…

Both the build quality and the aesthetics of the device are great, in my opinion of course. The unit is made of metal with a small portion at the back being made of plastic (something that is usual on a device that has BT connectivity, as BT has issues transmitting/receiving through metal).

There are smooth ridges along the top and bottom of the unit which make it a bit more aesthetically pleasing than if it was just smooth, along with a gunmetal grey style finish and a screen on the top of the unit, make the Gryphon look rather good, again, in my opinion. I like the fact that iFi are one of those companies that always try to be a little different, you might love or hate the result, but they are never run of the mill and bland.

As far as connections, there are plenty, along with plenty of dials and buttons for those of us who like to play around with settings etc.

On the front of the unit, from left to right, we get a 3.5mm unbalanced headphone output, a 4.4mm balanced headphone output, two small LEDs that show kHz and input status, a volume wheel with a coloured led and led ring (more on that in a moment) that is also a push button, two more LEDs that show status of Xbass and XSpace, a push button that controls XBass and XSpace, along with access to the menu, and finally one more push button that selects input.

Both sides of the unit are curved and free of controls, while the bottom has a switch that controls IEMatch and 4 rubber feet and the top sports an oled screen that illuminates behind a mirror finished panel.

Finally, on the back (again from left to right) we get a toggle switch that allows us to choose the effect of the XBass (more on that in functionality), a USB-C charging port with status LED, a USB-C data port (which can also be used for charging), a an optical and coaxial input, a 4.4mm balanced input/output and a 3.5mm unbalanced input/output port.

As you can see, there is no shortage of connections and controls on the Gryphon. Now lets get into what can actually be done with all these connections and buttons/switches.

AVvXsEgG9rP1RbvK8QLnZo2QyxFVkzrxdZ2ep2fU9U4WoEzcZP11SYAD7BK9BnTfTBcJAMRPtE_x12K_gzz_1TzOt-VmdYQFko1fr8vR_sG1EsDDEi1zSzVnhdY-CCHX6kguRrUkd-GIRDWKxRIkB7XTfOQqEVQYkx7-iZBRC8-UJTHqmwzsTnC-fKjr3QJp=w640-h426


Power and specs…

Before getting to the functionality, just a quick mention of the specs. According to iFi, the Gryphon is capable of putting out 1000mW at 32 Ohms, with a max of 6.7v. Now, after looking at something like the Diablo with 3500mW, this may not seem a lot. I can assure you that it is enough to drive the vast majority of headphones unless we are talking about very hungry headphones.

They also state that it uses a hybrid Burr-Brown DAC chipset which is the same as the one used in their Pro iDSD Signature (that comes in at over 3000€).

The gryphon can decode PCM up to 768kHz, DSD512, DXD768 and is also an MQA decoder. I think that should cover almost any file format you may be using especially while on the go.

It also sports Bluetooth connectivity with support for SBC, AAC, aptX, LHDC, LDAC, aptX HD and aptX Adaptive. Again, this should cover everyone's Bluetooth needs (unless you need a mic of course, one of the few things that the Gryphon doesn’t have).

AVvXsEhKjRwRWHw0C-TqB3H8Phlp0bHqwT8IxqrfZ-gBps5o-iNQ4BJsG-62N6t6XSYS-YLfx9zgc4yZ4cYZplw0358bfpdtd8zJ9LCJCb2P-n_icXvdRpfMeXRdDh0nyT-K-RB8IWcbj4DQaLQ1CnTwrLK2Bfl0Vj9u_lEtv0oOe5CMNn_CuUQoBK6i0fVW=w640-h426


Functionality…

There is so much going on with the Gryphon that I am not sure I can cover everything, at least not in detail, but I will try to cover everything at least in basic form.

Let me say that I did use the Gryphon “as it came” for a couple of days before updating to the latest firmware, however, as I strongly suggest that anyone who gets the device does the update as soon as they open it, my usage is based on the latest firmware at the time of publishing this review (v1.43).

So, starting with the basics, to turn on or off the device, press the volume dial for a couple of seconds. Depending on whether you have activated the hidden function or not, you get an animation of a Gryphon flying across the screen.

The same push of the volume knob once the device is on, serves to control playback. A single press is play or pause, a double press is next track and three presses is previous track. This works not only via Bluetooth but also via USB, at least on windows. Obviously this is not going to work when using optical/coax or analog line in.

The button just to the right of the volume, as said, is to turn on XBass, XSpace or both, with each press making the next step in the cycle. While the XSpace is the usual iFi function of adding perceived space to the sound, on the Gryphon, the XBass can actually be set to do different things. This is done by means of the three way toggle switch on the back of the unit. By setting the switch to bass, the XBass is just a bass boost. If set to presence, XBass becomes a boost of the higher mids, and when set to bass+presence, it boosts both bass and the upper mids. This gives the Gryphon more sound options than are usually found on iFi units. These EQ changes are done in the analog realm, as always with iFi, and also affect the analog outputs on the back of the unit, so can be used with speakers or other amplifiers etc.

AVvXsEhCR1K_Ufg1-SLq2EvwXW8x5gWze52ivhYmfj9lDplc1jbpPtNOx6EOb515EfdtGIabZRcg8ssYidreko02w2YOeHIAuTN53UeAgNbCuLPuBH9fNjCrtkD7MLa1b2WutizMu_HBYCnj-odfhI5E7BFBv8vuek9NP8beexEoVE1ftoy2ic001JL02Ae3=w640-h426


The same button also gives us access to the menu by means of a long press. This brings up the menu on the screen and allows us to set certain parameters of the device. The options are as follows.

Digital Filter: This changes the filter used in the DAC portion of the device, allowing a selection of Standard, Bit Perfect or GTO. There is also a fourth filter option, Minimum Phase, that can be unlocked by a combination of buttons. I am not sure why iFi chose to hide it (it was available on older firmware versions), but they did.

Screen brightness: This obviously controls the brightness of the screen and can be set to High, Low or Auto, with Auto turning the screen off automatically after a few seconds.

Volume Limiter: This allows us to set a maximum volume level that the Gryphon will not go past. When the unit was first released (on older firmware) there was an issue with volume jumping to high levels by accident, this function stops this from happening accidently. It can be set to Off, 95%, 80% or 60% of maximum volume.

Volume Sync: The Gryphon can sync with the volume of the device it is connected to. However, there was an issue where the volume could be accidently changed in Windows (for example) sending the device to Max suddenly. This option can be set to Off, so that it is no longer sync’d with the source volume.

Volume Soft Ramp: To be honest, I am not sure what this does as I haven’t used it but my understanding is that it makes the intro to playing smoother, with a sort of fade in (I could be wrong, please let me know if I am!).

BT Voice Prompt: This can turn on or off the voice notifications when connecting to Bluetooth.

USB Dual Port Charge: This lets you decide if you want both ports on the back to serve as charging ports for the device or not. In other words, you can turn this off when connected to a phone and it will avoid the battery discharge of your phone.

Factory Reset: I’m sure I don’t need to explain this one.

All of those functions are available in the on screen menu, however, there is one more function that is accessed by the toggle switch underneath the device, the IEMatch. This is something that iFi sell separately and is to change the impedance of the output of a device so that extra sensitive IEMs can be used without and background hiss (something that I mentioned on the Go Blu).

The IEMatch can be set to 4.4 or 3.5, with each of them being designed for the 3.5mm or 4.4mm output. However, the 4.4 also affects the 3.5 and vice versa. This means that there are 2 extra settings that may come in handy for some.

But those are not all of the tricks that the Gryphon can perform. It can also be used as a DAC only device or even as an amplifier only device.

Apart from the digital inputs on the back of the unit, with a selection of USB, Coax or Optical (by means of an adapter for the last two), there are also 2 input/output ports, one balanced and one unbalanced.

These ports, when the device is being fed from a digital source, are automatically outputs, allowing the Gryphon to be used as a DAC to feed another amplifier or powered monitors, be these balanced or unbalanced.

However, these can also be used as balanced or unbalanced inputs, allowing the device to become an analog only amplifier, being fed from another DAC, or even another analog source such as a turntable (as long as the turntable has a built in preamp or you connect one to it).

When used as a DAC only or Amp only, the XBass and XSpace still work as they are in the analog path before the outputs, so you still maintain all the functionality.

I think I have covered everything but I have probably missed something, as there is just so much functionality packed into this device.

AVvXsEiIyhXy250dpX7oETUrdRZtoRPn3qWvdMEjP8Z0Mj0lDCc8vwtklCv9nGXGIJPsrupZMnwprEgqQv9DZ8-viGnJD_PfK53tRjTCvjN45cJ5mmPk0FoOr97ekPFT1e7Ms6nU_8qmMOcKmQ_kjMGez045fZQHV1cXBtUNPl7r7r0Q7XlJZX4gqA0od7vO=w640-h426


Sound…

So, the million dollar question, how does it sound? Well, that depends.

I could just say that it sounds great, because it does.

However, as I believe I have said many times before, the differences between the sound of various good DACs, or various good amplifiers, is minimal. Yes, there are some differences, and some things just seem to “vibe” better with certain things (the so called “synergy”) but to be totally honest, they are not night and day differences, although some of us like to think so.

Yes, I found things like the S9 Pro to be overly sharp in the treble, yet I don’t hate the THX789, an amplifier that is “sterile” or “sharp” depending on who you talk to. This, in my opinion, is a combination of multiple things. There are minimal differences between (good) equipment, there are also differences in how we interpret sound, we have personal preferences and biases that make us hear things that may or may not be real. But again, all we need is for our brain to like the sound, who cares whether it is due to the different brand of capacitor, the pixie dust cable or simply a figment of our imagination, as long as we like the result, it sounds good.

And again, the Gryphon sounds great to me.

But honestly, there are so many things that can be tweaked on the Gryphon, such as filter settings, XBass, Presence, XSpace, IEMatch, balanced or unbalanced outputs, that the only thing that it can’t change is personal bias. If we don’t want to like the sound of the Gryphon, be it consciously or not, then we are not going to like it, no matter how many things we tweak.

However, for those that are open to loving it, I think that there are enough tweaks to suit anyone's needs and preferences.

As far as how I like it? Well, I already said that it sounds great to me and I also said that I have reached out to iFi to pay for it and keep it, I don’t think I need to say anymore than that.

I have tried it with almost everything I have on hand, well, maybe not everything as I have far too many IEMs to test them all, but I have tried at least 10 different sets of IEMs and most of my headphones. I haven’t found an issue with any of them.

I do find that, as with the Go Blu, that I prefer the single ended output for IEMs. There seems to be just a touch more warmth (all else equal) on the SE output, but this could just be me imagining. The SE output also allows me to use most of my IEMs without engaging IEMatch to account for any background hiss. I don’t have anything against IEMatch, I think it is a great idea and I applaud iFi for including it in the Gryphon (something that I thought the Diablo should have either included or at least shipped with), but it can result in a slight change in the lower frequencies on low impedance IEMs.

As far as headphones, I think I could live with just the Gryphon and the Arya v3. It drives them beautifully and even sounds good with them out of the SE. I do think that the balanced output suits the Arya more, especially the v2, but even out of the SE, the combination sounds better than many balanced options I have heard.

I also spent some time with the HD6XX, the headphone that I can love or hate depending on the time of day, and I must say that it was a very pleasant experience. The same goes for, well, anything I have plugged into it. I haven’t come across a situation where I thought “eww, this doesn’t sound good together”.

Is it the best sound I have ever heard out of a headphone, well no, but it is good enough for me to have been happy with it. There is a nice touch to the sound that reminds me a lot of the Asgard 3, somehow very detailed but not overpowering. Yet, switching over to balanced, bitperfect filter and with IEMatch off, I struggle to notice any difference between the cleanliness and detail of the THX789 and the Gryphon.

Using it as a DAC only, it sounds glorious feeding the Asgard or the P20. I must say that I really like the DAC stage paired with other things.

When using it as an Amp only, fed from the Modi 3+ (or the SU-8), it is clean and articulate, easily replacing the Atom in my usual test chain.

What else can I say without repeating myself? I just find it sounds great.

AVvXsEgQLojqrnS0Ul516vJSFAzsEs4nDN2HCrywZdZ22fjaGlVJFaG9eDcaCxq-3pWZ8HeN7KOb58NVsK52qA9atpAzePG23vLHM7Tkm34k4YO0D4oCwq00qKcJ8lGn24wN3Sq7RHttpRhdXcktL214ZEvdp5pz0U0jn4j3vxhc9vkHcmDaTEsTZCMLt67P=w640-h426


Conclusion…

I guess that by this point you know I am not going to say that I hate it 😀

Is it perfect? No.

Is anything I own perfect? No.

Is there anything that can beat it at the same price tag? Not as far as I know.

I am not just referring to things that I have heard, I am actually referring to things that I know exist, and I really can’t think of anything that offers what the Gryphon does, especially at this price point.

There are desktop options that can compete but they are obviously not portable. There are portable units that may be able to compete as far as sound (for example, I like the neutral “no frills” sound of the BU-2), but they severely lack in options in comparison. There are DAPs that may have the same functionality with the added benefit of onboard playback, but I am not sure that DAPs in the 600€ price bracket are “better” in sound terms than the Gryphon. They may be of similar characteristics as far as sound or even power, but they can’t be used as Amp only, nor have multiple digital inputs, nor can they feed multiple outputs at the same time. If any of them come close to this, I can assure you they are not 600€.

If all you want is sound quality, then I am fairly certain that you can find something that competes for the price, especially if you are going the desktop route, but if you want all the functionality of the Gryphon, in a portable format, then I don’t think there is anything out there.

As I said, it is not perfect. I would like a way of bypassing the battery for example, as I would use this a lot with my laptop, so it would be great to avoid the stress on the battery. But then we get into the “clean battery power” discussion, which works in favour of the Gryphon.

I would have loved an onboard mic also, like on the Go Blu, as it would be great to be able to take conference calls on my laptop or phone without swapping devices/headphones.

I could probably find more things that I would “like”, which would probably turn the Gryphon into the car designed by Homer Simpson, but it is really so close to perfect, I really can’t complain.

My plan is that the Gryphon will now become my reference source for review also. Until now, even though I listen on multiple setups, I always did my final “detailed” listening via the JDS Labs Atom (unless otherwise noted in a review due to power requirements etc). The Gryphon will replace the Modi 3+ & Atom setup, giving me a solution that offers me the same sound, no matter where I am.

And I guess I should leave it there. I am sure that this review reads more like an ad than a review but it really is nice to review a device (or headphone) that I really like. It makes my time spent with the unit a lot more enjoyable and, in the case of this device, as it is a DAC/Amp, I get to use any headphone or IEM that I want!

As with all of my reviews, this is also available in Spanish both on my blog (here) and on YouTube (here)
Jimmyblues1959
Jimmyblues1959
Excellent review!
Off2Geo
Off2Geo
The only thing the irks me is that you cannot power this as a desktop DAC/AMP only via the USB-C Data port... you have to use a separate power brick to power it... Correct?
GridIroN
GridIroN
@Off2Geo No, the Gryphon does not require any power bricks.

Headphones and Coffee

Previously known as Wretched Stare
Simply Incredible
Pros: Sound is extremely well done
Power is more than adequate for a portable
Loaded with features like BT connectivity, XBass ,XSpace, 8 hours of use and Build quality is above average. it looks great too.
Cons: Charging time is a little long, would have liked 6.35mm instead of the 3.5mm but really, it's hard to find much wrong.
20220127_194514 (1).jpg



  • DAC specs:

    DAC specs:​

    • 32-bit Burr-Brown True Native DAC chip
    • GMT (Global Master Timing) clock reduces jitter and distortion
    • supported audio files: up to 32-bit/768kHz PCM; DSD512 (22.5 MHz); DXD768
    • offers full decoding for MQA (Master Quality Authenticated) audio files
    • S-Balanced headphone amplifier specs:





    • two headphone outputs:
      • one unbalanced 3.5mm stereo minijack output
      • one balanced 4.4mm output
    • iFi's dual-mono circuitry helps reduce crosstalk between the left and right audio channels
    • XBass II sound control processing lets you add more bass or "presence" (upper midrange) to your music
    • XSpace naturally expands soundstage
    • CyberSync perfectly synchronizes volume levels between source device and headphone amplifier
    • iEMatch helps reduce noise and "hiss" in high-sensitivity in-ear monitors
    • output power:
      • 4.4mm balanced: >1000mW @ 32 ohms; 74mW @ 600 ohms; 6.7V @ 600 ohms
      • 3.5mm unbalanced: >320mW @ 32 ohms; 40mW @ 300 ohms; 3.5V @ 600 ohms
    • signal-to-noise ratio:
      • balanced: 116dB
      • unbalanced: 115dB
    • THD: 0.005%
    • Bluetooth specs:





    • Qualcomm QCC5100 Bluetooth 5.1 chip
      • supported codecs: aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA, AAC and SBC
    • supports over-the-air updates for adding future codecs
    • max. supported Bluetooth resolution: 24-bit/96kHz (using LDAC or LDHC)
    • Connections and controls:





    • front panel:
      • unbalanced 3.5mm and balanced 4.4mm outputs for connecting headphones
      • rotary knob/multifunction button for changing volume and making setting selections
      • settings and Bluetooth pairing mode buttons
    • rear panel:
      • unbalanced 3.5mm and balanced 4.4mm inputs for connecting external sources
      • USB-C and 3.5mm coaxial/mini optical S/PDIF digital inputs
      • XBass II switch
    • Other info:





    • bottom-mounted iEMatch switch for reducing hiss in high-sensitivity in-ear monitors
    • top OLED screen displays battery information, track resolution, source, and more
    • includes USB-C cable, Lightning-to-USB-C cable, and USB-C-to-USB-C cable
    • 2-15/16"W x 3/4"H x 4-13/16"D
    • weight: 0.48 Ibs.
    • warranty: 1 year
    • Our 60-day money-back guarantee
    • MFR # 0310003
Okay this thing has been hyped for good reason; it really is that good so ill cut through the fanfare and get to my opinion on this.

Build quality is as good as most things from ifi well thought of and implemented. accessories are okay honestly; they could have been a little better, but I have my own. Box is a box and we all seen them before inside you will find.

iFi xDSD Gryphon owner's manual

Portable DAC/headphone amp
12" USB cable (Type A USB on one end and USB-C on another end)
5" USB-C cable (USB-C plugs on both ends)
5" Apple/USB cable (Apple Lightning connector on one end and USB-C on another end)
Soft storage case
User Manual
Warranty card

Sound and performance!

It boasts a whopping output of 1000mW at 32 ohms, and up to 6.7 volts at max output. Yes, its just shy of my other favorite the Tri TK-2 but the Gryphon more than makes up for that with a ton of features including Bluetooth. I had no conative issues and it ran my most demanding Full sized great as well as my very sensitive IEMs too no problems, with ultra low noise and almost desktop like power I think most will be happy with this.
Sound: The XDSD Gryphon presents with an almost Neutral /Balanced signature, the lower frequencies have just a little warmth much less than the XDSD and iDSD I used before. The Bass is full and impactful without over emphasis , Mids are rich and lush with a very natural and detailed presentation. imaging, layering and separation are far better than I was expecting for something under the Diablo my benchmark portable. Treble is open and airy with a almost perfect extension in my opinion great details can be hear without harshness.

In conclusion:
This is at the higher end of ones budget but it can easily replace a stack so its cost effective in the long run. I think most people will be hard pressed to find another that offers so much in a portable package.


  • Like
Reactions: pitsel and gLer

gLer

No DD, no DICE
xDSD Gryphon: the new portable standard
Pros: Unmatched versatility
Outstanding design, both physical and functional
Premium build quality
Superb sound quality, both wired and wireless
Cons: Some questionable software 'features' and early firmware issues
Could use more premium accessories
Bluetooth 'bug' prevents LDAC connection on some devices
Once in a while, I come across a product in this hobby that doesn’t quite fit into the normal boxes. iFi’s xDSD Gryphon (or just Gryphon if you’ll allow me) is a good example.

Combining elements from two previous products – xCan and xDSD – and adding some interesting new tech of its own, Gryphon is a new portable DAC and headphone amp platform that combines many different technologies introduced and perfected in other iFi products into a compact, advanced, and very accomplished performer.

In doing so, it ambitiously aims to cover multiple bases for multiple use cases. Whether you want hi-res Bluetooth input (including LDAC support), hardware MQA decoding, a proven multibit DAC with native DSD and DXD support, a fully-balanced amp architecture with 4.4mm inputs and outputs, Gryphon does it all, and much more.

In fact, it tries to do so much that it risks becoming a jack-of-all-trades, but as I discovered in the past few weeks, it pulls it off the juggling act remarkably well, making it far more than the sum of its many parts.


Spec sheet

Before we dive into the review proper, let’s take a bird’s eye view of everything Gryphon:
  • DAC: Hybrid multibit Burr Brown
  • Formats: PCM 768/DXD/DSD 512/MQA Studio Master
  • Outputs (headphone): 4.4mm balanced / 3.5mm single-ended + S-Balanced (3.5mm balanced)
  • Outputs (line): 4.4mm balanced / 3.5mm single-ended
  • Inputs (analogue): 4.4mm balanced / 3.5 single-ended
  • Inputs (digital): USB-C (up to 768kHz), SP/DIF (up to 192kHz), Hi-Res Bluetooth (up to 96kHz)
  • Bluetooth (input only): v5.1 support (SBC, AAC, AptX Adaptive, LDAC, HWC)
  • Battery: Up to 8 hours, separate USB-C charging port and dual digital input/charging port
  • Power output (single-ended): >320mW @32 Ω (headphone); 3.5V variable (line out)
  • Power output (balanced): >1W @32Ω (headphone); 6.7V variable (line out)
  • Output impedance (headphone): <1 Ω
  • THD: <0.005% (1V @ 16Ω)
A boxful of tricks

The unboxing experience is much the same as that of other recent and past iFi products, which is to say very high quality. Gryphon ships in a lidded box, complete with a colorful cardboard sleeve full of specs, features, and lots of pretty pictures. Inside, you’ll find Gryphon covered in a soft wrapper, along with a warranty card, fold-out user guide, a velvet-lined carry pouch, and three cables: two short USB-C to C and USB-C to Lightning cables for connecting to smartphones and tablets, and a longer USB-C to A cable for hooking Gryphon up to laptops and desktops.

I would have preferred a harder protective case (I have one on the way from my go-to case maker, Miter), which would have been a welcome addition for someone like me who babies gear against all manner of domestic household dangers. Also, since Gryphon is small enough to be used in a stack with a phone or DAP, I’m surprised iFi didn’t include any elastic rings to keep the stack together. Quibbles aside, the accessory list is more than sufficient, and any of the add-ons I mentioned should soon be available to buy separately anyway.


Build and design

On seeing Gryphon for the first time, I had two reactions: it really does look just as good in person as it does in the marketing material, and it also looks and feels substantially smaller than I expected it to be for such a full-featured device.

The last iFi DAC/amp I owned was the original Micro iDSD, and that was big, bulky, and rather ugly by comparison. Gone are the industrial lines of the iDSD, replaced by a flask-like two-tone shell with a premium-feeling (and importantly, fingerprint-resistant) space grey matte finish. The case itself is about the same size and thickness as a pack of playing cards, which is to say shorter than a modern oversized smartphone but more than twice as thick. It’s also fairly stocky at 215g, which is understandable given all the tech and components it crams inside the metal shell.

Inspecting the buttons, dials and knobs reveals high-quality, precision mechanical finishes with just enough tactile give for fluid movement and haptic feedback, but without feeling too loose or wobbly (I’m aware of some reports of rattling volume dials, but my unit has no such issues). Four slim rubber feet adorn the base, cleverly keeping it stable on a tabletop and safely raised off your smartphone or DAP when using them as a source.

For all the possible permutations, not a single space, button or knob is superfluous. Make no mistake, Gryphon is a brilliant piece of industrial design, and one that can serve as a blueprint for even more potential functionality in future iterations (more on that later).


Features and functions

It’s worth covering all the buttons and their associated features together, because of how interconnected they all are to each other.

Starting with the most visible of these, the volume dial, not so much a dial as a multi-function knob, acts as an on/off power switch, menu selector (when inside the settings menu), and most importantly as an analogue volume control. Did I mention it can also be used to mute the volume (single press) and, with the latest firmware, gives you full pause/forward/reverse track control when connected with Bluetooth?

The fit and finish of the dial is top-drawer. Turning the dial feels very satisfying and solid with perceptible click-click-click feedback in small intervals for fine (1dB) adjustments, but without ever feeling like it’s going to slip or skip multiple volume steps (unless you turn it faster). The way it’s been positioned slightly forward means you can set Gryphon flat on a desk or hold it in one hand and still turn the dial with a gentle one-finger push or pull, which is very well thought through.

While Gryphon features a variable brightness OLED screen, you can also eyeball the volume level by the colour of the LED ring around the volume dial and the LED light on the dial itself. There are six possible ranges, from mute (no light) through to -2db to +6dB (red). Visually setting the dial to magenta (-56 to -39dB) or green (-38dB to -21dB) is an easy and safe way to know you’re not going to blow your ears off when you hit play with sensitive IEMs or headphones plugged in.


Speaking of which, I’ll be remiss not to mention the elephant in the room when it comes to the volume issues that plagued Gryphon initially. Gryphon includes a new iFi feature called CyberSync that attempts to take control of the volume function from the host device under certain circumstances, so that changes to the volume on the host or Gryphon adjust both devices simultaneously.

It’s a good idea in theory, but as it turns out, a rather confusing (and with the original firmware) potentially dangerous one. For a small number of users, connecting Gryphon to some devices (most commonly Windows PCs but also some smartphones and Macs), and then using certain host software (like Tidal) resulted in a sudden and unpredictable volume spike, setting Gryphon to full volume (6dB +Turbo). As you can imagine, having IEMs in your ears when this happens is not a pleasant experience.

The biggest problem, it seems, was not only a CyberSync bug that caused the dangerous volume jump (thankfully corrected with the latest firmware update), but also the inconsistent nature of the CyberSync adjustments on Gryphon and/or the host device. For example, I can still connect Gryphon to my Macbook Pro running Audirvana, and if my master volume is set high on the Mac, it will be sometimes be adjusted up on Gryphon or down on Audirvana. I’m sure that if I take the time to observe when it does what, I can better predict what’s going to happen, but it’s unnecessarily complicated for a feature that’s meant to simplify volume control.

Since it’s purely a software feature, I’d like to see a future firmware revision that allows me to manually disable CyberSync in the settings menu, and to therefore have the option of controlling the volume from Gryphon independently with any device. Another useful firmware function would be to set a volume limiter on Gryphon, which would at least prevent earsplitting disasters if CyberSync is left unchecked.

All that said, I have never had a single volume-related issue with my Gryphon and MacBook, DAPs or smartphones, but I’d still suggest getting into the good habit of lowering volume level before you hit play.

There are two more mechanical push buttons on the front face – a smaller selector button (furthest right) that switches between input types (more on these later), and a slightly larger button that toggles between the built-in XBass II and XSpace functions (again, more on these later), and also activates the settings menu with a longer press. Opposite the buttons, on the left-hand side of the face, are the two headphone output ports, 3.5mm S-Balanced and 4.4mm fully balanced, sized the same as the adjoining buttons to create a neatly symmetrical layout on the fascia.


There are also two other levers on Gryphon: one on the base that lets you activate two different levels of iFi’s IEMatch technology for sensitive IEMs, and one at the back, which toggles between three different options for the XBass II feature.

Starting with IEMatch, the options are labeled 3.5mm, 4.4mm, and OFF (default), supposedly because the more powerful 4.4mm output requires higher output attenuation than the ‘weaker’ 3.5mm output, although both settings work with both outputs. Since I don’t use IEMatch I didn’t spend much time testing for quality differences between the two, but iFi have since confirmed this is the same IEMatch technology used on its standalone and well-received balanced IEMatch accessory, which makes it a great value-add for sensitive IEM users (notably any IEM from Campfire Audio).


The additional XBass II functionality is quite different, and as far as I know, unique to Gryphon. According to iFi, with XBass II ‘you can select ‘Bass’ and/or ‘Presence’ so that the upper midrange frequencies are correctly added back into your favourite recording’. This is something I would have missed entirely had I not checked what the back toggle was all about. It also means that XBass II is more than just about bass, because it can boost upper midrange independently of bass, a potentially useful feature for IEMs or headphones that dip the presence region but don’t need any bass correction.

Combined with XSpace, which mainly affects the treble frequencies to add more air into recordings, Gryphon now has limited but effective analogue-based EQ toggles for bass, upper-midrange and treble, either independently or together in different combinations. I can personally attest to using all three settings to add flavour to some recordings, and in different ways depending on the IEM or headphone I’m using. The fact that it’s so easy to do, and that the effects are never overdone, makes this a very powerful addition to Gryphon’s feature set.


Even more features

Given the smorgasbord of genuinely useful features packed into Gryphon, perhaps the best feature of all is the DAC itself. When I reviewed iFi’s other new portable Bluetooth DAC/amp, GO blu, I noted the ‘missing’ hybrid multibit Burr Brown DAC that iFi uses for almost all of its products. Thankfully, the BB DAC is back with Gryphon, and with it, the very respectable hi-res decoding numbers and formats I felt were lacking on the smaller dongle, including full PCM 768, DXD 768, and native DSD 512 support.

Admittedly these ultra-hi-res formats are only available with direct USB input, but the fact that they’re available at all is the point here.

The DAC is ably supported by a plethora of hardware and software features, including a customised negative feedback amplification design that iFi calls OptimaLoop, which apparently uses different types of negative feedback circuits for optimal performance. Another amplification tech iFi calls PureWave is meant to be a type of optimised dual-mono balanced topology (previously only found in iFi’s higher-end NEO and Diablo amps) for Gryphon’s balanced inputs and outputs, which in theory reduces distortion and improves linearity.

Switching to software features, Gryphon offers a choice of three DSP ‘filters’ (in fact two filters and one unfiltered bit-perfect mode), selectable via the settings menu from the OLED screen. STD is a moderate digital filter with zero pre-ringing and modest post-ringing properties, while GTO (Gibbs Transient Optimised) is a proprietary iFi digital filter that upsamples all content to 384kHz/352kHz depending on the clock source, with only moderate pre- and post-ringing, which, from what I understand, combines the advantages of oversampled delta-sigma processing without the associated ringing artefacts.


Whether or not you think these filters add anything useful is again entirely up to you to decide, but I have to admit hearing some added clarity and dynamics in the sound with GTO enabled, without the presentation becoming too digital.

Speaking of the OLED screen, this is yet another major feature that’s entirely new with Gryphon, and to my mind changes it from a dumb terminal-like DAC/amp (i.e., every other iFi portable product) to something entirely different, and better. Not only does the screen look really cool, it’s also dimmable, can be switched off, and offers a second, very visible and very easy way to check which settings, volume levels, Bluetooth codecs, and inputs and outputs are active at any one time.

The screen also makes it easy to visually make fine volume changes, and is a good way to double-check you’re not about to blow your eardrums with a CyberSync malfunction. iFi has also gone as far as using special low-power circuits for the screen that supposedly don’t add any interference (noise) to the sound. They’ve even given it a name, SilentLine, if you can believe that.

But aside from being a marketer’s dream device for cool-sounding feature names, Gryphon is undeniably packed full of genuine audio-optimised hardware parts from the likes of Alps, Kemet, MuRata, Panasonic, TDK and Diodes, and I believe the quality of parts reflects in the quality of sound.


Ins and outs

Okay, this is the last stop before we get to the good stuff about sound, but to me, the star of the Gryphon show is quite simply its versatility. By that I mean all the different ways it gives you to get your music in from different devices, and the simple yet powerful ways it lets you push it out again with exceptional quality.

Starting with inputs, Gryphon supports an almost full range of digital and analogue inputs, especially for a battery-powered portable device. These include 3.5mm single-ended and 4.4mm balanced analogue inputs, S/PDIF optical and USB digital inputs, and the piece de resistance as far as I’m concerned, hi-res Bluetooth digital input. There’s even a separate USB-C input port for charging the battery independently, letting you charge up while connected to any other input (though you have the option of charging while connected to the USB-C digital input as well).

For playback, Gryphon features four types of outputs: dedicated 3.5mm (single-ended or iFi’s 3-pole 3.5mm S-Balanced) and 4.4mm fully-balanced headphone outputs, and dedicated 3.5mm and 4.4mm line-outs. To save space, Gryphon’s analogue inputs cleverly double as line-outs, switching function automatically whenever you’re using a digital input (like Bluetooth or USB) at the same time.

Since most of the above is self-explanatory, I want to rather spend some time focusing on what I consider Gryphon’s biggest advantage over other similarly-priced (and even higher-priced) portable DAC/amps: Hi-Res Bluetooth. While Bluetooth input is nothing new, the level at which iFi has implemented and refined its Hi-Res Bluetooth input technology sets it apart from any other Bluetooth-equipped device I’ve heard to date. If GO blu surprised me with the quality of its Bluetooth sound – which was only marginally inferior to its wired input – Gryphon pushes Bluetooth quality even closer.

In fact, the difference in sound quality between Gryphon’s LDAC and USB inputs is so small, for anything but the most focused listening sessions, I don’t even bother to wire it up.


There is a small sting in this tail, however. I found a bug – not in Gryphon, but rather in some source devices, like the LG V60 smartphone and a few other smartphone models – that prioritise the AptX Adaptive codec over LDAC, and therefore won’t allow Gryphon to switch into LDAC mode. While this is a very niche bug that affects a very small number of devices, the solution is seemingly a simple one – allow users to manually enable/disable the various Bluetooth codecs in Gryphon’s settings menu. By disabling AptX Adaptive in Gryphon, the buggy sources will see it as an LDAC device.

Sadly, this is not possible, yet, but I’m reliably told that the feature request has been escalated, and hope to see it made available soon. It’ll certainly return Gryphon to optimal functionality for my use case.

There’s also one more feature I’d like to see added, either to the current Gryphon – if it’s at all possible – or to a future version: Bluetooth transmission. While it might seem counterintuitive to pack Gryphon full of dedicated, high-quality audio components designed specifically for analogue output – only to bypass all of them by switching to Bluetooth – there’s a case to be made for turning Gryphon into the ultimate audio interface with this one, simple tweak. Just a thought, iFi; you can thank me later.

Sound impressions

This is the part where I tell you how amazing Gryphon sounds compared to anything else you’ve ever heard. Seriously though, I always add a disclaimer before discussing how a source device – be it a DAC, amp, or both in this case – actually sounds, because they don’t actually have a sound of their own other than how they control and affect the sound coming from your IEMs and headphones. Give two people two different IEMs and one Gryphon, and you’ll get two versions of what Gryphon ‘sounds like’.

All that aside, I can tell you how I hear Gryphon with my IEMs and headphones, how it compares to other sources I own, and what I think about the overall quality of the pairings based on my own preferences and music choices.

I mainly tested Gryphon using a pair of Sennheiser IE 900 IEMs, but I’ve also made notes on how it sounds with other IEMs and headphones, including Sony’s IER-Z1R IEM and MDR-Z1R headphone. Digital sources included HiBy’s RS6 DAP, LG V60 Thinq smartphone and MacBook Pro. I used a variety of test tracks that I’m very familiar with, including (but not limited to):
  • Lana Del Rey – Dark But Just A Game
  • BEYRIES – Alone
  • Brandi Carlile – The Story
  • Eagles – Hotel California (Live)
  • Agnes Obel – The Curse
  • Bjork – Hunter
  • Daft Punk – Contact
  • James Gillespie – What You Do
  • Jillette Johnson – Bunny
  • Jethro Tull – The Waking Edge
  • Angels of Venice – Trotto

Tonality

I hear Gryphon to have a fairly neutral and linear tonality, with slight warmth in the lower registers, but overall a clean, balanced, and generally transparent presentation. It follows a similar tuning philosophy to GO blu, which again seems to be a departure of sorts from the company’s more pervasively warmer house sound that it still uses in the Micro iDSD series.

This is not neutral in the sense that it’s reference or worse, lifeless, but rather strikes a very healthy balance between overt cleanliness and musicality. It’s not overly analytical, though it won’t do much to change the analytical nature of IEMs that lean that way unless you make use of its sound-shaping features. Instead, I find it delivers quite a rich palette for IEMs and headphones to work with, excellent timbre throughout, and just the right amount of emphasis without oversaturating the sound.

It doesn’t make sense to break down the bass, midrange and treble response other than to say there’s no obvious boost or dip in any of these frequencies, other than a slight emphasis on note solidity and speed down low, and some added air up top. Whether or not that’s a good thing for you depends on what you’re looking for from a source, and what you’re pairing with it. Personally, I prefer linear and transparent sources that support rather than those which affect specific frequencies and run too warm or too cool.

In saying that, with XBass II (and its midrange-shaping capabilities) and XSpace, Gryphon can indeed ‘correct’ the shortcomings or enhance the qualities of IEMs or headphones that need some tweaking. More importantly, it does this in hardware, not software, so there’s no quality hit to the audio chain.

I found XBass II’s bass impact is more prominent than GO blu’s, but can be tempered down using the Bass + Presence setting. The Presence-only setting is also useful for restoring upper midrange bite to IEMs like IE 900, in cases where its dip in this region is too deep for your liking.

XSpace is less a treble bump and more a subtle spatialisation effect, still affecting mainly the treble region but less obviously so than GO blu. If you’re using IEMs or headphones with limited stage width, depth or height, it’ll give you some much-needed breathing room, but I mostly left it off since stage size is never an issue with my gear.


Technicalities

The key to Gryphon’s technical performance is its ultra-low distortion and noise floor, allowing the technical performance of the IEMs and headphones I used to shine through. I don’t perceive any drop in detail or resolution, and if anything, resolution is slightly improved over the R2R-based HiBy RS6 (I’m splitting hairs here, but the RS6 does cost almost three times as much as Gryphon).

Essentially, you’re not making many – if any – technical compromises to resolution, imaging, dynamics or layering and separation when switching from a higher-end source to Gryphon. Some may perceive a slight drop in stage width compared to higher-power desktop amps, but this really depends on what you’re driving, and how well your IEMs/headphones scale with more power. In every torture-test I put Gryphon through, such as the collision sequence in Daft Punk’s brilliantly atmospheric ‘Contact’, it didn’t skip a beat, keeping the different elements separate but cohesive, and keeping a tight grip on the drivers, be they 7mm in IE 900 or 70mm in MDR-Z1R.

There are caveats to this otherwise sterling scorecard, of course. You will hear a slight drop in technical performance when switching to Bluetooth input, especially when using lower-bitrate codecs like AAC or (shock-horror) SBC. Even with LDAC, with its support for almost 1Mbit of bandwidth, the soundscape will flatten, and the fringes of vocal and instrument transients may not be rendered quite as crisply as they would with a bit-perfect wired connection.

Gryphon is also, ultimately, a highly portable, hand-held source, and as such it won’t give you the same headroom as even a basic AC-powered desktop stack. But again, unless you’re driving large planars or similarly insensitive headphones, you probably won’t notice the difference, especially with easily-driven IEMs.

Even if performance is not 1:1 on par with similarly-priced desktop gear, the convenience and freedom of being untethered from a desk (or phone) outweighs any performance issues. Moreover, Gryphon is less affected by cable power noise issues that can be problematic on desktop sources, and sometimes cost more than the sources themselves to mitigate, so you may in fact find its performance exceeds your desktop gear in some aspects.


Select pairings and comparisons

Gryphon is one of three recent releases in iFi’s portable product portfolio, along with GO blu and hip-dac 2. hip-dac lacks GO blu’s Bluetooth input functionality, but compensates with added power and more robust format support with its Burr Brown DAC and higher-end audio components. Gryphon combines the best features from both devices, and ups the ante across the board: more power, better Bluetooth quality and range, higher-spec components, broader format support, more inputs and outputs, and an overall bigger, better user experience.

Compared to Go blu ($299), Gryphon refines both wired and wireless sound quality. You can step further away from your source when connected wirelessly, and take advantage of higher-res format support, and even questionable software features like CyberSync if you’re so inclined. Both devices are tuned similarly, with a clear, crisp but still engaging and musical presentation, but Gryphon adds more note weight, definition and stage size, and is able to drive bigger and less sensitive headphones. Its sound shaping features and DSP filters are also more robust.

Where GO blu wins hands-down is ultra-portability, and the simplicity of being able to connect-and-forget while on the go, and sound performance is close enough to leave Gryphon at home and take GO blu on the road, even for longer trips.


Compared to HiBy RS6 ($1400), Gryphon takes a different approach sound-wise, being more neutral and transparent compared to RS6’s warmer, fuller and more organic tilt. RS6 does sound more natural with certain genres, especially with vocals, by virtue of its discrete R2R DAC, although Gryphon’s hybrid multibit DAC and features like the GTO digital filter get Gryphon really, really close in terms of naturalness. Gryphon also has more output power and a lower overall noise floor, even though both devices are hiss-free and more than powerful enough to drive all but the most stubborn headphones. In terms of absolute SQ, Gryphon matches RS6 blow-for-blow and is even slightly more advanced technically, with a wider stage and better clarity.

I’ve actually found the two to be complementary in the time I’ve spent with them so far, often using RS6 as my wired and Bluetooth source for Gryphon, especially when I want to use Gryphon’s extra output power. Another benefit of using the two together is connecting them using a balanced cable, effectively combining RS6’s excellent R2R DAC with Gryphon’s powerful, low-distortion amp.

Since RS6 is a self-contained DAP, it has its own advantages over a DAC/amp like Gryphon, not requiring external sources for one, and being able to navigate and manage multiple music sources from the device itself. If you’re after a standalone device for music playback and want to keep your music player, phones and computers separate, then RS6 is an excellent Segway from devices like Gryphon, but if sound quality is your only measure, you won’t lose anything with Gryphon and it’ll cost you significantly less.


I can highly recommend iFi’s brilliantly-made 4.4mm interconnect cable if you’re planning on tethering Gryphon to a balanced DAP or desktop amp – easily one of the best-looking, best-built and best-performing interconnects I’ve had the pleasure of using.


It’s been a while since I’ve used any of iFi’s larger portable devices, and I haven’t had the pleasure of trying out the newer xDSD and hip-dac series for that matter, but I’m confident enough to say that I don’t really see a use case for myself with any of them. Gryphon’s Bluetooth support and quality, for instance, makes the thought of using a wired-only external DAC/amp or dongle unpalatable at best. We’re fast-moving towards a time when wireless source quality will match wired performance, and with Gryphon (and GO blu to a lesser extent), the differences are already too small to warrant wired sources most of the time.

What hasn’t changed is our reliance on wired IEMs and headphones for maximum sound quality. Pairing Gryphon with a good pair of IEMs is the optimal use case for me, and the synergy with both the IE 900 and IER-Z1R is exceptional. But Gryphon is just as adept at powering easy-to-drive full-size headphones, like Sony’s MDR-Z1R. Unless you need the absolute portable freedom (and advanced features) of true wireless IEMs or headphones, you’ll get maximum sound quality with only a small loss in portability using Gryphon as a Bluetooth streamer for your wired IEMs, and if you want to get even more portable, GO blu.


Verdict and closing thoughts

When I first read about Gryphon, I didn’t quite see how it would fit for me, having switched to using IEMs exclusively, and using them exclusively with a DAP. It was GO blu that opened my eyes to the usefulness of a Bluetooth-enabled source for my wired IEMs, especially when I wanted to use my higher-end IEMs on the go. That’s when I joined the dots and fully understood Gryphon’s potential.

In one compact and still (for me) very pocketable device, iFi has evolved the concept of a portable Bluetooth streamer, bringing along all the advantages – and sound quality – of its upmarket wired DAC/amps, throwing in a few extra new and improved features in the bargain. For much less than the cost of a high-end DAP, you can now buy equivalent sound quality, better versatility, and enough power to drive not only IEMs but also full-size headphones, and still be able to move about freely with your music.

From the very first time I used it, Gryphon started changing the way I engaged with my music. For one thing, I credit Gryphon with encouraging me to re-look at getting a full-size headphone as an alternative to my IEMs. Then, using a smartphone with more ‘smarts’ and speed than any DAP, meant I didn’t have to skip a beat between the music player interfaces I’m already familiar with (specifically UAPP on Android).

With its outstanding Bluetooth input quality, I also wasn’t constrained by having to wire up the phone, and in fact, could even use the DAP as a source if I needed the phone for other tasks. And, when I wanted to max out sound quality, Gryphon includes everything I need to wire up my sources in the box.

iFi may have been a bit ambitious in claiming Gryphon as the ‘birth of a head-fi legend’, but I will say it’s easily the best portable device I’ve used in all my time as a portable audio enthusiast. That includes the flagship Lotoo and HiBy DAPs I’ve used in the past (and still use today), both in terms of sound quality but, just as importantly, flexibility, functionality and versatility. It liberates you from worrying about how to get your music in or out, which sources you can connect to, or which IEMs, headphones, or even speakers you want to use, without having to worry that sound quality and driving power will be compromised.

Sure, it had some teething issues, CyberSync being the most obvious and one that I suspect will still take some time to fully resolve. It has some missing parts – a case would be nice, and some stack loops too while we’re at it – and if someone at tech central could please fix the annoying AptX Adaptive ‘bug’ for me that would be much appreciated!

But these are hair-splitting gripes. Gryphon is just about the complete package, and I believe it’s only going to get better as iFi fine-tunes existing (and potentially new) features in firmware. Where it goes from here is anyone’s guess, but knowing iFi, there’s an upgrade path in development, if not already in production. As a version 1.0, Gryphon sets the standard for what’s possible in portable audio today, and I keenly await to see how the platform evolves in the future.

If, like me, you prioritise portability as much as you do absolute sound quality, and don’t want or need the extra headroom (and potential benefits) of full-size desktop gear, then Gryphon is an unequivocal must-buy. Highly recommended.

dsrk
dsrk
Jimmyblues1959
Jimmyblues1959
Excellent review! This is one of the nicest looking portables on the market.
Jimmyblues1959
Jimmyblues1959
And if it sounds half as good as it looks, iFi will have another winner on its hands! 😀

Voxata

Headphoneus Supremus
xDSD Gryphon Review
Pros: Sonic performance & staging, excellent tonality, aesthetically pleasing, BT performance, musicality
Cons: Cybersync (Volume Sync with device), noise floor with ultra-sensitive iems & IEmatch increases output impedance, battery saver doesn't work and no setting to enable it. Sub bass rolloff/freq compression.
Earlier in the Gryphon thread I had posted some early impressions and comparisons of the xDSD Gryphon compared to some other units. While those impressions still stand after a good number of weeks I've become more familiar with the device and would be happy to share my full review. The xDSD Gryphon to me strikes a fantastic balance between neutrality and musicality. The device is linear with a wide sound stage yet doesn't let the analytical nature of modern devices take over. Going forward let's cover my thoughts on the features and sound quality of the device.

As a disclaimer my xDSD Gryphon was purchased personally and was not part of a demo/review program.

Features:

The xDSD reminds me of the iDSD BL series in terms of system compatibility - even more so with what they've crammed into this device. 4.4mm is the new standard for mobile friendly balanced (and for good reason) and is the perfect choice for the Gryphon. With it you get the full power for your harder to drive headphones. On the back you've got 3.5&4.4 connections that can either be used as output from the internal DAC or inputs to use the Gryphon as a dedicated headphone amp. XBass&XSpace are rather enjoyable implementations that do not overpower the sound like some previous devices did when enabled. With my stable I did not prefer using these but I can definitely see it's use for certain headphones or perhaps listener preferences.

Easy swapping between USB, SPDIF, BT and Line In are possible with the front buttons, as is accessing the menu and navigating it. It's incredibly easy to get the Gryphon running and the speed of swapping between each of these is blisteringly fast. It's so nice being able to get the Gryphon going in just about any scenario I want with excellent results. Bluetooth performance is exceptional as well with only a minor degradation in sound quality, you'll really have to focus to detect the difference between wired and wireless.

The Volume knob changes colors based on power output easily letting you know where you're at and the tactile feel of it is incredibly pleasing. The buttons are easy to use and the screen brightness can be adjusted. Fit and finish is exemplary and it shows that Ifi took their time on the hardware side of designing the Gryphon. Jacks are all solid and there is little concern for durability with the Gryphon. The screen is bright and clear, and doesn't appear to induce noise which is fantastic. I do wish they'd used glass instead of acrylic as a cover for the screen but, this is a minor nitpick.

**EDIT** The Gryphon has a built in battery saver, this is always enabled. Great job Ifi!
Missing however is an ability for eco battery when used as a desktop DAC/Amp. Ifi states to turn on the device then plug it in so that the unit doesn't charge all the way, though in practice I've not had much luck and you'd have to unplug and turn it off every time you are finished using it, then turn on and plug in when you are ready to go again. There is an option in settings however to have one cable both charge and supply data - which is an excellent toggle addition if you've got clean USB. If the battery charge control would be implemented as a menu option in settings the Gryphon would be a completely desktop friendly device in my opinion.

Cybersync is a feature better in marketing and not so much in practice. This allows the volume of the Gryphon to be controlled by the device it's connected to. Ever accidentally maxed out your OS or phone volume with too long of a button press? Imagine that combined with 1W of power and a set of IEMs. Before a firmware update was provided by Ifi myself and others had experienced volume spikes between tracks in certain players and in other scenarios with the Gryphon. When dealing with 1W of power and a device marketed as IEM friendly this is a big problem.

Firmware has thankfully corrected most of these volume issues, but knowing I could accidentally adjust the volume on my android device while it is in my pocket is a constant worry. What if my phones volume button were to be held down while exercising or moving about blowing my ears out or damaging my IEMs? This concern has made the Gryphon unusable while on-the go and forced it to the desk or sitting positions where I know I've got full control of the environment. A firmware option to remove this 'feature' would be very welcomed.

IEmatch is another feature issue of the Gryphon, though mostly for users of ultra-sensitive IEMs. Unfortunately as a CA Solaris owner I was impacted here. The Gryphon is very powerful, and thus the noise floor presents itself with ultra-sensitive IEMs. The 4.4mm IEmatch setting squashed dynamics and changed the FR of my CA Solaris IEM. Without IEmatch the Gryphon hissed quite loud. 3.5mm is serviceable, though not ideal. The output impedance changes up to almost 10Ohm with IEmatch enabled which is important to keep in mind. With other IEMs I did not have an issue and the Gryphon performed incredibly well.






Sound:

The Gryphon's signature is more neutral leaning with a hint of warmth. It's decently fast yet not sibilant. I think it's a rather nice balance however I will start with the obvious "Birth of a Head-Fi legend" as being a bit of a marketing overstatement. It's not nearly as fast and detailed as my dedicated desktop devices, though it is important to note the price of the Gryphon is a fraction of what my desktop rig costs.

What does push it towards legendary though is that I prefer it's presentation, sound quality and overall experience to the iDSD BL. For a do-it-all device this puts the Gryphon into being a benchmark for this segment. The soundstage is well represented with fantastic positioning. Instruments are defined and the three blob soundstage of the iDSD BL series is gone. This is replaced by correct placement and significantly more precise imaging. A very slight bit of warmth really helps the package come together. Mids are fluid and come across neutral yet are forgiving. Highs are extended and airy with great sparkle. Bass is engaging and tactile, despite not being the end all in bass resolution I've not heard a device this size present such a fantastic grip on the lower registers. It however does not dig deep into the sub area, pushing focus towards lower mid bass. This is still an incredible accomplishment for Ifi.

As a DAC the Gryphon performs admirably well. Feeding a signal into my Freya S was made easy with a 4.4 to XLR L/R cable. The experience was more than acceptable and I was toe-tapping in no time. The Gryphon is so incredibly close to a do-it-all device leader in it's price segment. As an amp I felt the Gryphon did quite well. I feel that the amp of the Gryphon has it's own sound characteristic - and it's a rather pleasing sound at that. Given the internal DAC performance though I don't see myself using the Gryphon as a dedicated amp. The Gryphon shines as a combo plenty bright.




Conclusion:

The Gryphon on a hardware level is a fantastic device. Nothing on the market currently is pushing such a diverse featureset like Ifi and the Gryphon's sonic performance carries it to the skies. Unfortunately software and marketing choices have kept Gryphon from being above the clouds. Ifi can easily correct these issues through updates, aside from the IEMatch/Noise floor - this is a hardware level problem impacting Campfire IEM owners but let's be honest, MOST devices have problems with CA IEMs so this really is a nitpick of compatibility. If Ifi was to offer a Cybersync free firmware and proper battery saving this review would easily be rated higher and I'd be free to use this device on the go, in the chair and at my desk without any issues or concern. If this occurs I shall update my review - thanks for reading!
Last edited:
Voxata
Voxata
It does not. 3.5 is serviceable, 4.4 is completely crushed. This is with 4.4 output - 3.5 setting still impacts 4.4.. it's... weird. I'll need to test 3.5mm output on its own. It is likely much quieter.
  • Like
Reactions: BlueA
M
merkster
Hey @Voxata, can you do a quick comparison with your WM1A pictured?
Voxata
Voxata
It was in my prior comparison. I prefer the soft modded WM1A for it's unique flavor.

McCol

Headphoneus Supremus
Ifi-Audio produce another great bluetooth DAC/AMP
Pros: Sound Quality
Build Quality
Functions
Ease of use
Design
Cons: Minor niggles (although improved with updates)
Disclaimer - I was sent this by Ifi-Audio for my honest opinion, it is not a free sample. I will either send back or purchase after review period.


Background

The Gryphon is IFI-Audio's newest addition to their portable range of DAC/AMPS that can be used either with Bluetooth or wired to a source. My usage has been exclusively with my Samsung S21 Ultra smartphone (UK model). I haven't tested with either of my laptops as I already have options I use with them one being the excellent IFI Senn Signature AMP/DAC duo.

I recently reviewed the GO Blu from IFI and really love the little device, works flawlessly from my phone and drives my IEM's with ease. Liked it so much I bought and found myself using my DX300 DAP less and less, not because the Go Blu was better but just so easy to use and cracking sound quality for the price. I had high expectations for the Gryphon.

Like many others on Head-fi I seem to search for what I consider to be the ideal solution for a source. I always like the idea of a DAP but they inevitably end up disappointing me due to the majority having a reliance on Android, although this always seems appealing I find myself being disappointed due to them not being able to compete with my mobile phone in regards to ease of use and speed of the operating system, I also find that I have issues with the apps that I use for streaming. This always brings me back to the idea of using a DAC/AMP solution with my handset. Over the years I've tried various different options both wired and bluetooth but always find them lacking in some respect, either due to interference issues, sound quality, poor build or various other reasons.

For the last few months alongside the go Blu I had been using a DX300 which I loved the sound quality from but again found issues with Android and software/apps.

The Gryphon

Comes nicely packaged with a little felt like carry case and a usb-c to c cable for connecting to smartphones (Android), and a USB-C to USB-A cable is also included.

The Gryphon itself is a lovely looking unit and very tactile with its ridged body, has a narrow OLED screen that runs the length of unit, this shows sample rate, volume and battery level etc. Buttons and connections are well laid out, 3.5mm SE and 4.4mm balanced on the front of the unit and two usb-c connections on the back, one for charging and the other for connecting to source. There is a S/PDIF connection as well as 4.4mm and 3.5mm analogue connections.
I only used the USB-C connection and Bluetooth so can't comment on the other connections.

Here is a list of the Specification taken from IFI-Audio's product page at https://ifi-audio.com/products/xdsd-gryphon/

InputsWireless

Wired (digital)


Wired (analogue)
Bluetooth 5.1 (aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA, AAC and SBC Codec)

USB-C
S/PDIF co-axial

Balanced 4.4mm
Single-Ended 3.5mm
FormatsDSD
PCM
DXD
MQA (Decoder)

Bluetooth
DSD512/256/128/64, Octa/Quad/Double/Single-Speed
768/705.6/384/352.8/192/176.4/ 96/88.2/48/44.1kHz
768/705.6/384/352.8kHz, Double/Single-Speed DXD
384/352.8kHz

Up to 96kHz
DACBurr-Brown
BatteryUSB-C charging. BC1.2 compliant up to 1900mA charging current
Dimensions123x75x19 mm
4.8"x3.0"x0.7"
Weight215 grams
0.5 Ibs
Line Section
OutputsBalanced
S-Bal (SE)
6.7V max. (variable)
3.5V max. (variable)
Output ImpedanceBalanced
S-Bal (SE)
≤200Ω
≤100Ω
Balanced
S-Bal (SE)
<110dB(A) @ 0dBFS
<110dB(A) @ 0dBFS
Balanced
S-Bal (SE)
<0.007% @ 0dBFS
<0.015% @ 0dBFS
Headphone Section
OutputsBalanced
S-Bal (SE)
4.4mm Pentaconn
3.5mm SE
Output PowerBalanced


S-Bal (SE)
>1000mW @ 32Ω
>74mW @ 600Ω
>6.7V max. @ 600Ω

>320mW @ 32Ω
>40mW @ 300Ω
>3.5V max. @ 600Ω
Output ImpedanceBalanced
S-Bal (SE)
<1Ω
<1Ω
SNRBalanced
S-Bal (SE)
<116dB(A) @ 0dBFS
<115dB(A) @ 0dBFS
THD+N<0.005% (1V @ 16Ω)


Ease of use

There really isn't much to say here, for my purpose it was easy to set up and had no issues with the process, pairing was quick and simple, found my phone with no issues, the whole time I have been using it has held a constant LDAC codec at highest audio setting.
Wired connection with the Samsung S21 Ultra was a little problematic initially due to Samsung's poor implementation of USB Audio drivers and limited sample rates (that's my basic understanding of this). This means that you often hear pops and crackles when playing some tracks from streaming services, Audioquest (similar issue with Cobalt) explained to me that it is a limitation of Android and Samsung that causes this. I've had various DAC/AMPS that have struggled with this if they don't use their own driver.
Using USB Audio Player Pro app is a good workaround, it uses it's own audio driver and can now be opened as an app then it will use it's driver while you use apps such as Apple Music or Amazon that are not supported within the app.

Sound Quality - Wired

Equipment used

Etymotic EVO
Fiio FD7
64 Audio U6T
IMR Elysium
Sennheiser 660s
Mitchell and Johnson MJ2

Some comparisons with Ibasso DX300, IFI Audio Go Blu and very briefly with Astell and Kern SP2000T

Selection of tracks used including

Mogwai - Mogwai fear satan
Mogwai - My Father My King
David Bowie - The Rise and Fall of Ziggy Stardust and the Spiders from Mars album
The Smiths - I Know It's Over
The Smiths - Well I Wonder
The Velvet Underground - Oh Sweet Nuthin
Lou Reed - Waves of Fear
The Wedding Present - various tracks
Belle and Sebastian - various tracks
Pet Shop Boys - various tracks
New Order - various tracks
Martin Rossiter - Three Points on a Compass and Drop Anchor

Most tracks were streamed in their possible quality from either Amazon HD, Tidal or played from memory on the handset.

Low/Bass response - The Gryphon does a really good job of pairing well with all of my earphones to produce accurate bass that is never overwhelming but will give a kick when the track requires, an example of this being the two Mogwai tracks, Mogwai's music to me has a constant low frequency rumble especially when listening to live versions of the tracks, the gryphon reproduces with great accuracy and depth, bass is detailed and layered with excellent sub bass response.
Bass on electronic tracks from Pet Shop Boys and New Order is snappy and again very accurate.

Mids - These are probably the stand out for me, smooth and detailed which is how I like my mids to be on any device. In a similar vein to the bass response the mids are very accurate and never feel forced or unnatural. They don't sit far forward in the mix either, on the Martin Rossiter tracks which are just vocal and piano the mids are simply stunning, the emotion in his voice coming through wonderfully.

Highs - Starting to sound repetitive but again these are wonderfully presented and don't stray from the natural sound of the rest of the frequencies, guitars on Wedding Present songs have the crunch and snarl I would expect from them and the punch of guitars from Mogwai on their quiet/loud presentation is again stunning. The highs don't add anything extra that they shouldn't, if anything they may be slightly laid back compared to the other two but that maybe just to my 50 year old ears, and when I say slightly laid back that is a mere smidgen, if anything I probably hear this on all of the IFI equipment I have owned/tried. I always consider them to be a fairly natural sound with an excellent musical presentation and it's maybe this slight laid back approach of the highs that create this sound.

3.5 S-Balanced and 4.4mm connections both sound excellent to me, I had no issues with any hiss or background noise, clean signal at all times to my ear and headphones. The 4.4mm connection is the one I probably used most and it provided plenty of headroom and power to my Senn 660s. Never had to go above 70-75% on either connection, Etymotic EVE sounded wonderful from the 3.5mm, as is usual with Etymotic, the more power you give them the better they reward you and the Gryphon was no slouch with them.

Soundstage and depth is very good, competes with my DX300, maybe not quite as depth but not far off.

Features such as IEM match, Xbass and Xspace I only briefly tried. Probably not enough to really comment, xbass gives a little boost to the low end but I never felt I needed to use it.

Wireless

As can be seen from the specs the Gryphon supports a wide range of Bluetooth codecs, my use was with the LDAC codec and it never skipped a beat. Connection was reliable with no drop outs even when going into a different room, a lot better than my Go Blu that can drop out at times when using LDAC.
Sound quality from Bluetooth is virtually identical to wired, there is a difference but it's barely noticeable unless you are really scrutinising. It is by far the best wireless sound quality I have heard from a device.
There isn't much I can add to the wireless thoughts really, it is quite simply stunning.

Brief comparisons

IFI-Audio Go Blu - Different level really, don't get me wrong the Go Blu is an amazing device for the price but it can't compete either wired where it's support for higher sample rates is limited and although it is excellent as a bluetooth device it doesn't sound as good as the Gryphon, less power and not as detailed and less depth to the overall sound.

Ibasso DX300 - Now this is really interesting and there will be people who won't believe this but in many respects the Gryphon is as good as the DX300. The level of detail in the mids and highs competes with the DAP, the bass response is also more natural to my ears but maybe not as deep as the DX300. Overall soundstage and depth goes to the Ibasso but I found myself reaching for the Gryphon more as the weeks progressed, partly because it's a snappier experience with the high end smartphone but also because it just sounds so good and despite being half the price it runs the Ibasso close.

Astell and Kern SP2000T - Now this is very brief as I've only had it a few days but again like the Ibasso the Gryphon does a good job against a player that is 3 times its price however I think the gap is bigger. The AK SP2000T with it's tube/hybrid amp mode gives it an edge that neither the Gryphon or DX300 can match. The level of detail in the mids and highs on the AK are a different level of stunning, however this is probably not a fair match up.


Reported issues

There has been some reports on the Gryphon thread of issues with build quality around buttons (only 2 users i think) and volume spikes when using Tidal.
I've had no issues with build or quality control, it is built like a premium product and feels like it, buttons are excellent with no rattles etc.
I did experience the volume spike once when starting Tidal but never between songs or during songs. It happened when I connected in a certain way, never happens if I connect in a slightly different way and it hasn't happened since latest firmware update.
Some mis reporting of sample rates on the Amazon HD music app however this is something that happens on my DAPS and on smartphone, seems to be an issue with the Amazon app which is a truly terrible app.
No issues with Apple Music (only briefly tried) or Tidal (since update)

Overall impression

I've really enjoyed my time with the Gryphon, to me it is a potential replacement for those who don't want to use DAP's especially if you are mainly a music streamer. The sound quality and ease of use was was enough to make me sell my DX300, not because it was better but because for a fraction of the cost I could get within a certain percentage of the sound quality. Despite this I did buy the AK as I was curious about the triple amp system, I will keep the AK and need to decide if I will buy the Gryphon....Chances are I probably will, it gives me enough of a different sound experience and I'm more likely to use it outdoors than the AK so it will serve me well in that respect.

The Gryphon is another great product from IFI Audio that ticks all the boxes in regards to build, ease of use and most importantly excellent sound quality

Pictures -

20211227_102029.jpg20211227_102133.jpg20211227_102317.jpg20211227_102952.jpg20211227_103011.jpg
Last edited:
The Oath
The Oath
I knew if I searched enough, I would find the comparison to some good DAP's. I own the Gryphon and love it. Have been looking at some of the current offerings of TOTL DAP from iBasso and Cayin. Your comparisons give me good insight into the value of investing in an expensive DAP, and whether that may only be a small improvement in overall SQ. Thank you
  • Like
Reactions: McCol

HansBarbarossa

100+ Head-Fier
iFi Audio xDSD Gryphon: Soar to sound heights
Pros: Sound, design, functionality, price.
Cons: No
"High, high
What a feeling to fly
Over mountains and forests and seas
And to go anywhere that I please.."
ABBA - Eagle

Hi friends!

I am glad to inform you that today we are scheduled to meet with the new masterpiece of portable audio from the British brand iFi Audio!

In 2021, which we just had, iFi brought the world a range of absolutely amazing audio devices, updating already highly popular models with the release of HIP-DAC 2, micro iDSD Signature and the grandiose flagship of the iDSD line - Diablo, a line of PRO devices and ZEN-series, and also expanded its assortment with new products: Zen Stream (network player / streamer), desktop audio combine NEO iDSD and miniature masterpiece - GO blu.
And now there has been a landmark update to the xDSD line, which many audiophiles have been waiting for with awe - the brilliant Gryphon DAC / Headphone Amplifier! The Gryphon is a mythological winged creature with the body of a lion and the head of an eagle. Indeed, if you ride our flying beast from iFi you can soar to the most distant sonic heights! Flying high, high I'm a bird in the sky!

But before proceeding directly to the review, let me wholeheartedly congratulate everyone on the already come New Year, wish you good health, happiness and all kinds of blessings! And if Santa Claus has already given out his gifts, then the audio-ph editorial board is just starting to do it.

So let's flap our wings, take to the skies and fly into the realm of sound, "flying high, high like a bird in the sky" with xDSD Gryphon!



DSCF7726 1.jpg




Text: Alexey Kashirskey (aka Hans Barbarossa)


Specifications

DAC chip: Texas Instruments Burr-Brown DSD1793 (Bit-Perfect Burr Brown DSD, DXD, PCM)
Display: OLED / CyberSync (monochrome)
Formats: PCM / DXD 32 bit / 768 kHz and DSD512
Full support for MQA x16 up to 384 kHz
Digital filters: Standart, Bit-Perfect, GTO
Bluetooth: 5.1 (aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, LHDC/HWA, AAC and SBC Codec)
Inputs: USB-C (Charging), USB-C (Data), S/PDIF, 4.4mm (Balanced), 3.5mm (Single-Ended)
Headphone Outputs: 3.5mm (S-Balanced), 4.4mm (Balanced)
3.5mm (<1 ohm) / 4.4mm Pentaconn balanced (<1 ohm)
3.5mm output power: 320mW @ 32Ω, 40mW @ 300Ω, 3.5V @ 600Ω
Output power 4.4 mm: 1000 mW at 32 ohms, 74 mW at 600 ohms, 6.7V at 600 ohms
iEMatch: Yes
Functions: Xbass + and Xspace +
Battery: Lithium-polymer 3600mAh
SNR: Balanced S-Bal (SE) <116dB (A) @ 0dBFS / S-Bal (SE) <115dB (A) @ 0dBFS
THD + N: <0.005% (1V @ 16Ω)
Dimensions: 123x75x19 mm
Weight: 215 gr.



Appearance and kit

xDSD Gryphon comes in a presentable white box, the top of which is a print wrap. Above is the brand logo, next to it there are already two golden stickers, Hi-Res Audio and Hi-Res Audio wireless, in the center is a photo of the device in all its glory, and below is the designation of the model and its type of activity: xDSD Gryphon - Ultra-Res portable DAC + Headphone amp.





A complete list of technical features and specifications can be found on the side and back of the package.
Next, put forward a boiled white box with silver letters "ifi". Everything, as always, with my beloved Britons - stylish, laconic, neat, but without the slightest hint of boring stiffness.

With trepidation, we open the box and extract all the contents from it: the xDSD Gryphon itself, three connecting cables (USB type-C / USB type-C, USB type-C / Lightning, USB type-C / type-A), then we take out the fabric case, an "iFi" sticker, instructions and a warranty card.





Well, now let's get down to admiring the device, without this, in the case of iFi creations, it is absolutely impossible.
Like its predecessor, the first xDSD, Gryphon received an original and striking appearance. It resembles an exquisite cigarette case or flask with longitudinal ribs. However, a number of key points have been improved here.

To begin with, the dimensions of the device have slightly increased (123 x 75 x 19 mm), its weight is 215 grams, the color is now silver-gray matte metallic, the material is aluminum. Looks Gryphon, I want to tell you, unusually beautiful, but in the hands it feels even better!





The upper part has taken over a nice oblong OLED screen, which displays all the necessary information about the format being played, connection, battery level and additional functions.

On the front panel of the device there are two headphone outputs (3.5 mm TRS and 4.4 mm Pentaconn TRRS balanced), two indicators that display the selected input and the frequency of the reproduced signal, and a round volume control with a small LED signaling the level in different colors signal. The regulator, in combination, is also a button, when pressed, the device turns on / off. Slightly to the right are two indicators of the XBass + (bass increase) and XSpace + (space expansion) modes, the button for switching these modes, which, when pressed for a long time, takes us to the function menu (all information is displayed on the screen): Selecting a digital filter - Standard / Bit-Perfect / Gto; Voice assistant; Adjust the brightness of the screen; Dual USB Type-C charging capability, and reset function. Next comes the button for switching inputs: USB / BT / SPDIF / Line-Out. She, when pressed for a long time, searches for devices for pairing via the Bluetooth protocol. All information is clearly displayed on the screen of the device.






On the rear panel there is a switch (Bass / Presence), a USB type-C connector for connecting a power adapter and charging the device (under it there is an LED indicating the battery charge level), digital inputs: USB type-C and S / PDIF, and also two analog line outputs: balanced 4.4mm (BAL) and 3.5mm (SE).

The bottom side received a three-position iEMatch: switch (3.5mm / 4.4mm / Off) and four silicone feet placed at the corners of the device. The back side of the case, where the BT-receiver is located, is covered with plastic, as a result of this approach, there should be no problems with the wireless signal.






The build quality raises no objections, no backlashes and gaps. Everything is extremely reliable.
Separately, I would like to mention the chic volume control, reminiscent of a flask lid, with precise, "clacking" adjustment, an unusually smooth ride and a multi-colored LED.

The battery, when switching between different digital signal sources (USB / Coaxial / BT), on average, lasts about 8 hours. Charging time takes approximately 4 hours.
As I already mentioned, the battery charge level is shown on the screen, and is also highlighted by an LED on the back of the device (a handy thing, especially if you charge the device in the off mode):
Green:> 85%
Yellow: ≤ 85%
Red (flashing): ≤ 10%
The indicator flashes / lights up while the device is charging.

Now let's summarize what's new in the second version:
1) Informative OLED display.
2) 4.4mm Pentaconn balanced output (TRRS).
3) High power of the device.
4) Bluetooth 5.1 QCC 5100 / (codecs: aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA, AAC and SBC).
5) Full support for MQA x16 up to 384 kHz.
6) Choice of digital filters: Standard, Bit-Perfect, GTO.
7) Improved work of functions: Xbass + and Xspace +.
8) iEMatch for 3.5mm / 4.4mm.
9) New volume control.
10) USB type-C charging and USB type-C digital input
11) Updated design.
12) Kit.

With such updates, Gryphon can honestly be considered a completely new product!
At the same time, we have not yet reached the main reason for which this review was written - the "voices" of our hero. And here, I want to inform you, the most impressive leap has occurred. But let's talk about this a little later.






When connecting the device to a computer via USB, it is recommended to go to the manufacturer's website and install the appropriate USB audio (ASIO) driver. The driver is downloaded and installed quickly. After installing the driver, an icon with the iFi brand logo appears in the tray and the system automatically finds the xDSD Gryphon. If you, like me, use the foobar 2000 software player, go to preference / output and select the device we need from the list. I also recommend updating the product software (firmware), which is also posted on the manufacturer's website in the "support" section. Personally, when I received the device, I fully charged it and immediately rolled the new firmware.

My scenario for using the device turned out to be the following: xDuoo x10t II digital transport via S / PDIF (optics, coaxial), Huawei p20 pro smartphone (USB) using the UAPP software player + Bluetooth (HWA) connection, Samsung Galaxy Tab S7 plus tablet - Bluetooth (LDAC), PC via USB with foobar2000 player (Asio iFi driver). In all these cases, no problems arose.

Well, we seem to have figured out the kit, appearance and functionality, now we raise our wings and fly forward to the sound heights!


Sound Impressions

The xDSD Gryphon's capabilities are impressive without any caveats, both for wired and wireless connections.
The device is built on a Texas Instruments Burr-Brown DSD1793 DAC chip.
Before listening, the device was burn-in for about 70-80 hours.

We used: Beyerdynamic DT250/250, Phonon SMB-02, Phonon 4400, Softears RS10 & RSV, FIR Audio M5 & VxV, 64 AUDIO A12t & A18, Vision Ears VE8, EVE20 & VE4.2, InEar ProMission X & ProPhile 8.
Mostly the 3.5mm output was used, with the exception of the IEM FIR VxV which was connected to the 4.4mm balanced output.
The device played very well with all IEM / CIEM / Headphones, no genre deviations were noticed.

Digital signal sources: Dell XPS laptop, Huawei P20 Pro smartphone + USB Audio Player PRO, Samsung Galaxy Tab S7 plus (BT), xDuoo X10t II portable digital transport.





Let's start with impressions when using USB and S / PDIF connections.
In fact, it is quite difficult to describe the sound of the device, which is almost impossible to find fault with.

From the very first minutes of listening, the device takes a rather serious approach to sound production, demonstrating excellent dynamics, practicing attacks, separating instruments, as well as working out plans, with a stunning transfer of the volume of an imaginary space. This is a neutral, well-balanced and unusually melodic manner of conveying the material.





The device transmits well the timbre component, the development of quiet and loud sounds, reverberations, as well as macrodynamics with a moderate, sensitive display of micro-contrast.
Gryphon does not try to push forward all the smallest details of the composition, he does it delicately, correctly outlining the volume of virtual space, portraying audio images harmoniously and proportionally, in a balanced and extremely naturalistic way.

In terms of the "level of competence", so to speak, the sound of xDSD Gryphon gravitates to what the flagship iFi shows us - iDSD Diablo, but in terms of sound habits, their handwriting, their manners are still different.

Where the older brother strikes with scale, conveying the width of an imaginary soundstage and his analytical manner of presenting material, Gryphon, with a slightly restrained rendering of the width of space, takes depth, conveying volume and macrodynamics. That is, switching from iDSD Diablo to xDSD Gryphon is not perceived as a transition from a higher quality sound source to a lower quality one. Rather, it is like comparing two exemplary audio systems with partially similar and at the same time different manner of sound delivery, realized in different acoustic conditions.






And, of course, it is worth noting here the fact that the scenario of using the iFi iDSD Diablo with sensitive IEM/CIEM is very doubtful, since it has excess power for this. Whereas xDSD Gryphon is ideal for such purposes.

In general, I will say this, if you need a sound source that can cope with a wide range of headphones, including even planar full-size models, and for all its portability can be a good replacement for a stationary system, then you probably won't find a better iDSD Diablo. And if you need portability in a more compact size, with a flexible use case and the ability to work with both sensitive in-ear IEMs and high-impedance full-size headphones (we do not take planar models into account, here you need to look towards the older brother - Diablo), then the choice Gryphon would be the best solution in my opinion. Well, do not forget that there is still the possibility of receiving a digital signal over the air (Bluetooth), which is perfectly implemented, which the older brother does not have.

Ok Ok, let's go back directly to the description of the sound of our hero, otherwise I got carried away a little by comparisons.






The sound of the xDSD Gryphon is thoroughbred, smooth and clean, with a bodily filling of sound images. The device has a wide dynamic range, excellent speed characteristics, excellent tonal balance and amazing musicality. This is a living layer of sound, in which a plastic, neutral, well-balanced manner and refined melody coexist harmoniously.


Frequency amplitude

The low-frequency range is worked out precisely and bitingly, striking the ear with a clear pop and a tight, powerful blow. The bass is fast, prominent, dense and well-assembled, maintains the atmosphere with its dynamic manner, keeps the rhythm clearly and fills the middle with a dense velvety substance. The drums are extremely accurate, like artillery volleys, shoot their blows, scattering on both sides of the listener, and the parts of the bass guitar, cellos and double bass are transmitted unusually deep, lively and dynamically. The strength of each individual blow is clearly discernible. The register is transmitted cheerfully and harmoniously, powerfully and with the proper pressure!


Mids are distinct, smooth, natural, rich in timbre and texture. Here, every musical instrument and audio image is conveyed accurately and vividly. It is a well-balanced, pliable and multidimensional picture, with striking contrast and wide dynamic range, where every sound or instrument and every note played is clearly in its place in space. Stringed instruments, pipes and pianos - everything sounds pure, noble and harmonious. Male and female voices are displayed in relief, dense and naturalistic. There are no bright peaks or dips, everything is clear and to the point. This is a neutral, unusually dynamic, melodious, detailed and at the same time comfortable manner, presented in a melodic form.


High frequencies cleanly and clearly work out their own, correctly adding gloss and charm to the listening compositions. There are not many and not a few of them, just as much as needed. They are moderately restrained, there is not the slightest hint of friability or distortion in them. Everything is as honest, accurate and natural as possible. xDSD Gryphon transmits this register extremely competently, gracefully and multifaceted, smooth and informative, with good articulation, which completes the overall frequency harmony. Qualitative development of this range and nothing more. How I like it!





In terms of preference for musical genres, no weak points were found in the iFi xDSD Gryphon. He perfectly copes with everything: classical music, instrumental, jazz, electronics, old school rock and all kinds of brutal music styles.

Signal transmission via Bluetooth protocol.
When switching to a wireless connection, the sound of the device remains at a sufficiently high level, which is truly surprising. This is still the same manner as through the wires, but a little denser, with a little warmth and a greater depiction of the depth of the imaginary space.
Yes, the audio canvas loses a little in the transmission of micro-contrast, but at the same time it adds plasticity in relief, giving audio images more convex, and in general it becomes more musical. An amazing result. To be honest, I have never heard such sound quality when using various devices via Bluetooth. Although, it would seem, only recently I was very surprised by the capabilities of the iFi Go Blu baby, which I am not parting with now, but here the iFi engineers went further, making the sound even more serious.





Conclusion

xDSD Gryphon is, without exaggeration, an amazing machine! Everything is perfect in it: from design, implementation of the technical part, to the main thing - sound. It is a completely complete device in all respects, harmonious and balanced in everything. Without a doubt, the xDSD Gryphon will become one of the most revered and beloved portable tsapoi among audiophiles and music lovers.
I warn you that very loud words will be heard further, but this is my fully balanced opinion. So, I believe that at the moment in the world you can hardly find something better, given such functionality, sound quality and price. Although, of course, don't forget about the excellent Diablo! But here, when choosing, you need to proceed from the needs and scenario of using the devices.

At the time of writing, the MSRP for the iFi xDSD Gryphon was $599. Without a shadow of a doubt, I highly recommend this portable audio combine for your purchase.

DSCF0956 1.jpg
MalinYamato
MalinYamato
I am confused about your answer. Can you answer clearly if the amp in xCAN sounds better, worse, or the same as the amp in xDSD Gryphon?
HansBarbarossa
HansBarbarossa
Gryphon sounds better
alphaman
alphaman
My gawwwwwwwwwwwwwwwwwwwwwwwwwd ... it ONLY uses an old-skool PCM1793 for DAC chip?!!! Now that's cheap, iFi!!! I can literally go to Ali and get a similar product, way cheap, with a (say) ES9038.
Back
Top
