General Information

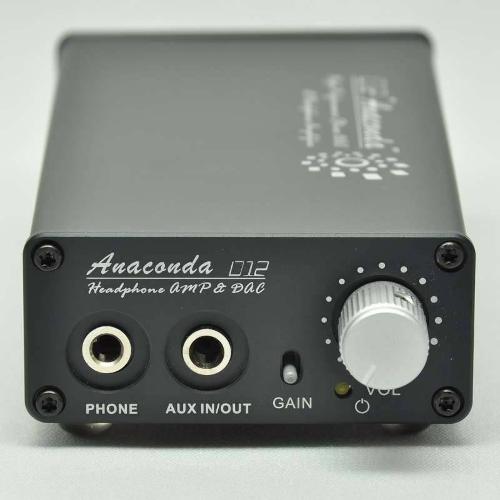

iBasso D12 Anaconda is the successor of the D10. The size of the D12 is almost same as the D10. They share the same functions. The main advantages of the D12 are the dual WM8740 DAC section, and the new amplification section that allow single opamps. The D12 is a Self powered DAC and Hi-Definition headphone amplifier with many input options, which includes digital inputs from optical, coaxial, USB, and analog input from AUX IN/OUT. It not only works as DAC/AMP combo, but also works as a stand-alone AMP, DAC, or USB soundcard. Also, the D12 has a new pulverization finish and split case, which is convenient for OPAMP rolling.
Specifications:
Power Source:Built-in 4.2V Li-polymer Batteries or
external power supply
Frequency Response: 17Hz~20 KHz -0.5dB (DAC)
17Hz~100 KHz -0.5dB (AMP)
Signal to Noise Ratio:101dB (DAC), 104dB (Amp)
Crosstalk: 97dB (DAC) 104dB (AMP)
Total Harmonic Distortion: 0.006%@1kHz/0dB (DAC)
0.005%@1kHz/0dB (AMP)
Output power:Up to 110mW+110mW into 32
Gain: +3dB/ +10dB (AMP)
Battery Life: 18Hours or 30Hours if amp only.
Battery Charge Time: 6 Hours
External Power supply: 5V DC
Recommended Headphone Impedance: 8~300
Case dimension: 2.2W x 4.1L x 0.9H (inch)
55W x 103L x 24H (mm)
Weight: 160g or 5.6oz
