Listing ID:
81620
Views:
255
65.00 USD
- Condition
- Excellent/Like new
- Negotiability
- Firm
- Ships to
- Anywhere

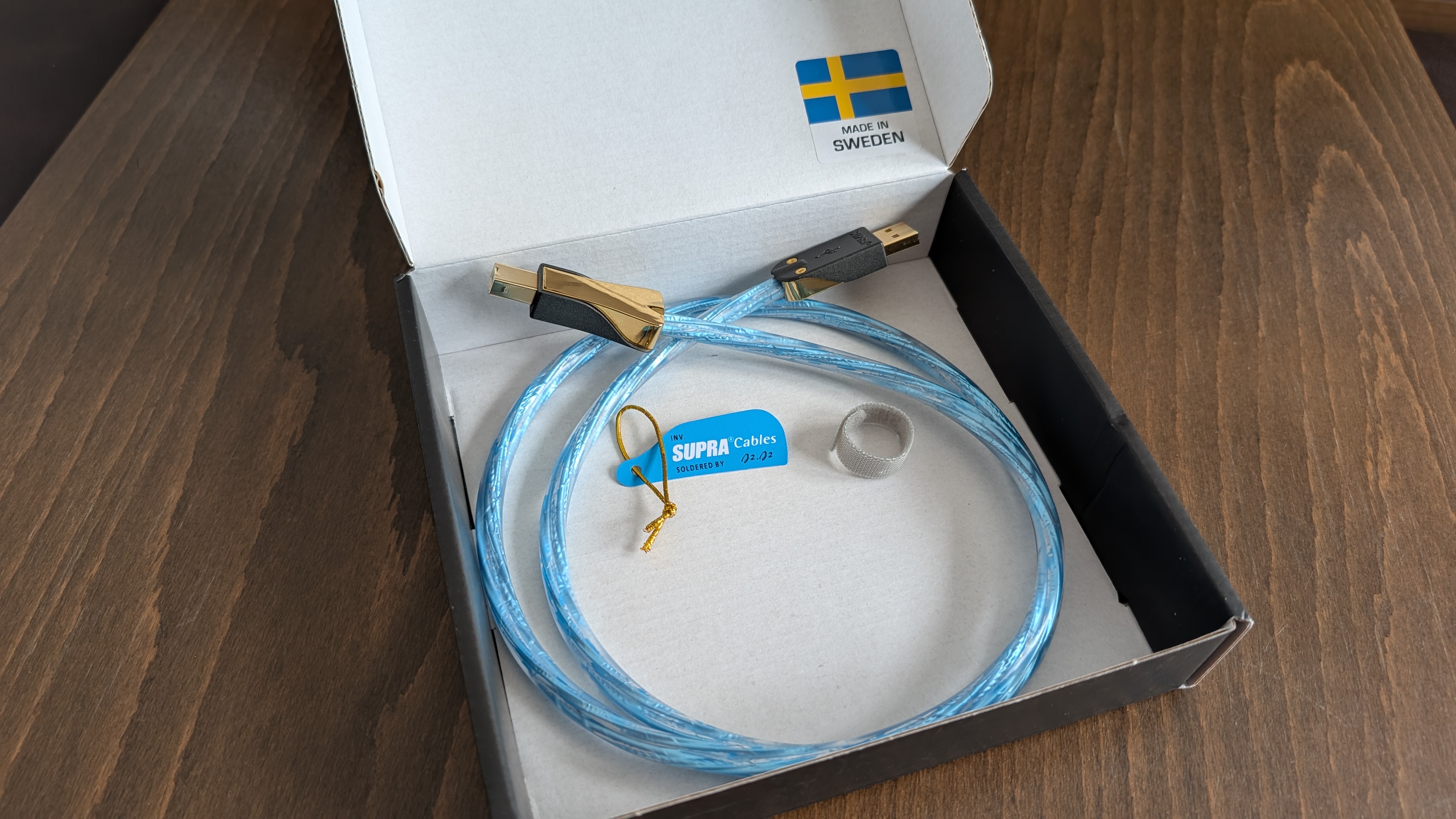

I'm selling my Supra Excalibur Silver Edition USB 2.0 A-B Cable, 1m / 3ft length. Asking price includes US shipping, but can ship anywhere. For international shipping, message me your address and I can provide the different options and prices. PayPal fees extra if you want to use G&S. NO TRADES, thank you.
Full product details:
We have for a couple of years been developing an ultimate USB Cable, the result was USB Excalibur. Our goal was simple, to make the world's best USB cable, with no compromises or shortcuts. Excalibur is a premium high speed cable with improved data and power transmission, a complement to the existing USB series. Both the data pair and the power pair are optimized for their purpose, transmit data and power.
The twisted data pair is made of PE isolated silver plated oxygen free copper wires. The silver layer is very thick, 3.8% of the total wire, for best conductivity and high velocity factor. Silver is great for high frequencies and high speed data transmission.
The construction of the power conductors are totally different compared to the data pair. To avoid power losses and to maximize the wire area we used 4 tin plated wires in a star quad configuration. Star quad design and the separete screen reduces any RFI greatly.
You probably recognize the design of the plugs, the USB plugs are offspring’s of our popular HDMI plug. Fully shielded in Aluminium. The plugs are detachable to make it possible to route the cable in 16 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.
Technical Info
Standard: USB 2.0 Hi-Speed
Connectors: USB A male ► USB B male
Signal Direction: Bi-directional
Application: Examples Computer peripherals, DAC's
Data transfer rate: 480 Mbit/s
Solder Tin: Almit SR-34 Super
Cable strain relief: Cable Clamp
Electrical Properties
Number of pairs: 2 pieces
Lead area Power: 4 x 0.24 / 23 Star Quad mm2 / AWG
Lead area Data: 2 x 0.24 / 23 Twisted mm2 / AWG
Number of strands: 19 pieces
Strand dimension: Ø 0.127 mm
Lead material power: Tin plated oxygen-free 5N copper
Lead material data: Silver plated oxygen-free 5N copper
Insulation: Low capacitance PE
Shielding: Aluminized PET foil
Jacket: Heat and age resistant PVC
Flame retardant: No
External dimension: Ø 7.3 mm
Electrical Performance
Data transfer rate: 480 Mbit / s
Impedance: 90 Ohm
Velocity factor: 0.66x C (speed of light)
Star-quad configuration
Full product details:
We have for a couple of years been developing an ultimate USB Cable, the result was USB Excalibur. Our goal was simple, to make the world's best USB cable, with no compromises or shortcuts. Excalibur is a premium high speed cable with improved data and power transmission, a complement to the existing USB series. Both the data pair and the power pair are optimized for their purpose, transmit data and power.
The twisted data pair is made of PE isolated silver plated oxygen free copper wires. The silver layer is very thick, 3.8% of the total wire, for best conductivity and high velocity factor. Silver is great for high frequencies and high speed data transmission.
The construction of the power conductors are totally different compared to the data pair. To avoid power losses and to maximize the wire area we used 4 tin plated wires in a star quad configuration. Star quad design and the separete screen reduces any RFI greatly.
You probably recognize the design of the plugs, the USB plugs are offspring’s of our popular HDMI plug. Fully shielded in Aluminium. The plugs are detachable to make it possible to route the cable in 16 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.
Technical Info
Standard: USB 2.0 Hi-Speed
Connectors: USB A male ► USB B male
Signal Direction: Bi-directional
Application: Examples Computer peripherals, DAC's
Data transfer rate: 480 Mbit/s
Solder Tin: Almit SR-34 Super
Cable strain relief: Cable Clamp
Electrical Properties
Number of pairs: 2 pieces
Lead area Power: 4 x 0.24 / 23 Star Quad mm2 / AWG
Lead area Data: 2 x 0.24 / 23 Twisted mm2 / AWG
Number of strands: 19 pieces
Strand dimension: Ø 0.127 mm
Lead material power: Tin plated oxygen-free 5N copper
Lead material data: Silver plated oxygen-free 5N copper
Insulation: Low capacitance PE
Shielding: Aluminized PET foil
Jacket: Heat and age resistant PVC
Flame retardant: No
External dimension: Ø 7.3 mm
Electrical Performance
Data transfer rate: 480 Mbit / s
Impedance: 90 Ohm
Velocity factor: 0.66x C (speed of light)
Star-quad configuration
Listed by:
KrishM (71)
Listed:
2025-01-15
