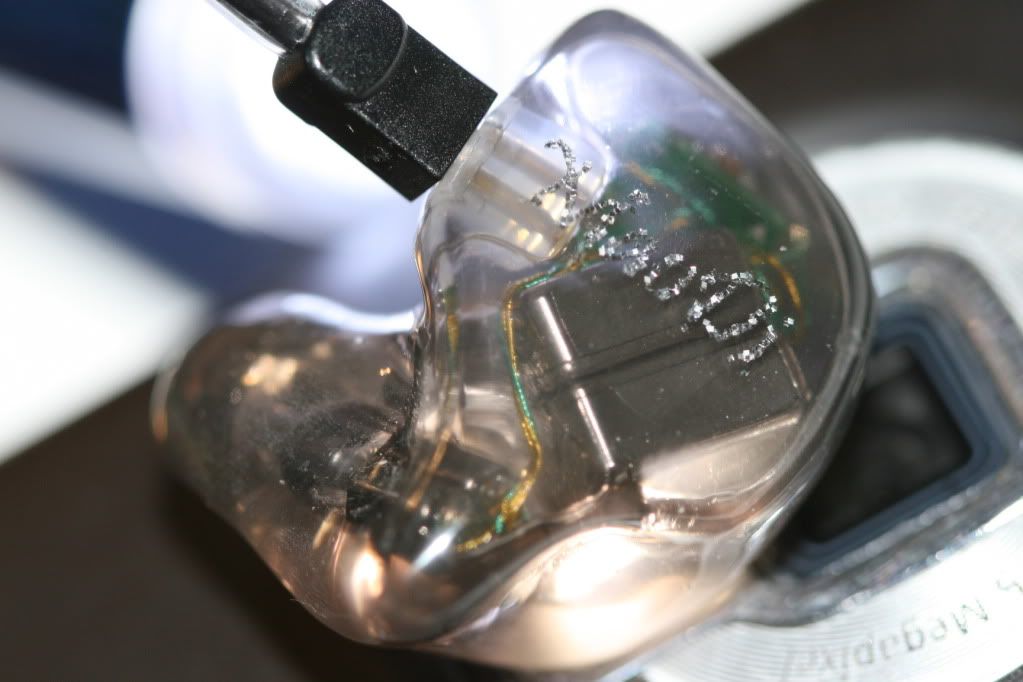

Hard to take photos of such dark IEMs. But here's and explanation, the Crossover circuit board is placed at the very top of the Monitor, as you can see on the first page. Below are the two low freq drivers (Knowles CI22955), below is the high/mid driver (TWFK). There is only around .5cm of tubing that goes over the soundport of the drivers and holds the filter, the rest of the way is a solid acrylic channel.
