Westone 3, disassembled.

post #1 of 49
Thread Starter
Thanks to the guys over at ZePhone Beijing (北京泽丰)for allowing me to repost these images here. They were trying to recable a W3 so they took some photo and posted them at erji.net. I didin't link all of the photos but those that are more interesting. You can check out the rest on the original thread here if you like.

Here is the whole nine yards.


Close up.


The crossover circuit.


The smaller transducer unit on top has dual receivers, presumably one for mid and one for treble. The big transducer underneath should be the bass drive.


Happy?
post #2 of 49
Wow, the actual internal parts look so small. So tightly integrated... And a lot of wasted space in W3 body.

Possible to make it into custom IEM?
post #3 of 49
Wow, they really neatly packed those armatures and board into there.

It's entirely possible to make them into customs, but you'd need to have access to the proper equipment. Have impressions made. Be able to make and pour a mold. Ironically, I have a lot of equipment where I could make my own, including a UV light that can instantly cure resins, but the amount of work required is just so much, I'd rather pay to have it done.

-Ed
post #4 of 49

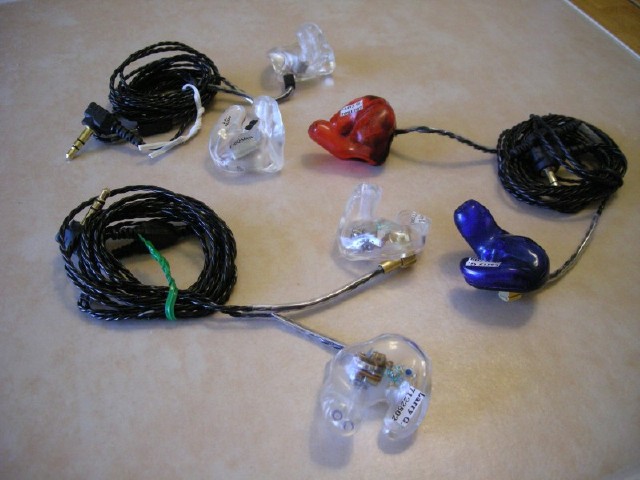

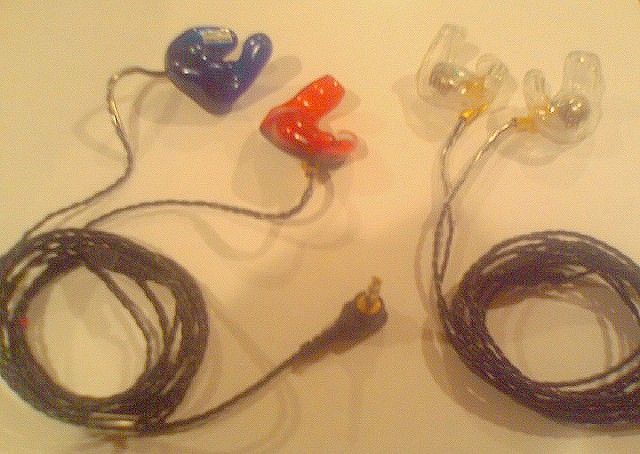

Or, you could crack open a Livewires custom IEM and stuff the SE530 drivers into it like mine in the foreground of the first photo, or right side of the second photo. The guys that did mine for me wont do anymore, sorry. I believe the W3 drivers would sound even better.


post #5 of 49
hmm only 2 nozzles? shouldnt it be 3 since they have separated drivers unlike the shures which have 2-1 (which should have 2 nozzles).
post #6 of 49
coooooooool...

but why recable? Westone's cable is amazing!
post #7 of 49
Westone 3 cable sux...
post #8 of 49
Quote:
Originally Posted by yuerakuten View Post
Westone 3 cable sux...
WHAT!
post #9 of 49
The Westone Um2 cables are better in various ways.
post #10 of 49
Very itneresting indeed
post #11 of 49
seems like too much open space. i wonder at the audio technica ck10 an ck100 casing: how neat and fast to the driver the body is?
post #12 of 49
Quote:
Originally Posted by yuerakuten View Post
The Westone Um2 cables are better in various ways.

I agree. It feels slightly heavier and a little more rigid making it less susceptible to tangling.
post #13 of 49
Thread Starter
Quote:
Originally Posted by pdupiano View Post
hmm only 2 nozzles? shouldnt it be 3 since they have separated drivers unlike the shures which have 2-1 (which should have 2 nozzles).
Because the smaller unit in the picture has two receivers (as in two balanced armature transducers) inside the same housing, so they share the same nozzle. How many nozzle is not important - the important part of how many ways the frequency has been split. Note that, the two receivers on the smaller unit are wired differently to the crossover circuit.
post #14 of 49
Quote:
Originally Posted by pdupiano View Post
hmm only 2 nozzles? shouldnt it be 3 since they have separated drivers unlike the shures which have 2-1 (which should have 2 nozzles).
Do you have six ear holes?
post #15 of 49
So, is that officially the smallest crossover board in existence? Thanks for posting pics OP
