First I have to say a big thanks to Nate for organizing another group buy for the diamond buffer PCB's

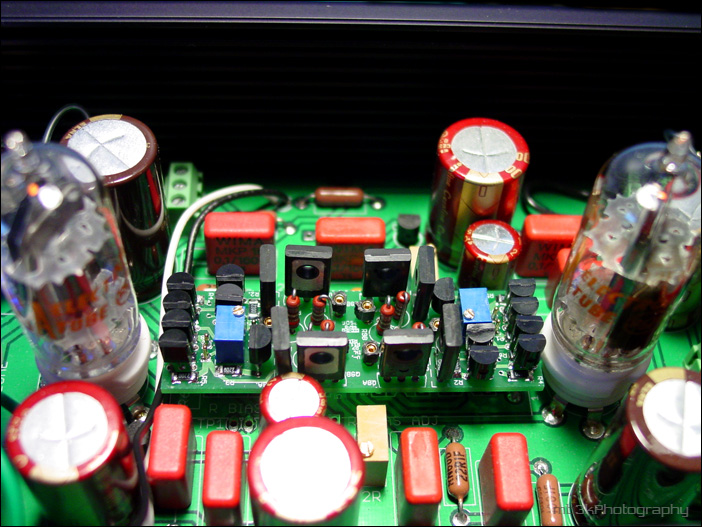

Here's my second DB build... my first one ended up in a real big mess when I soldered the solder pins upside-down and tried to desolder them. I physically ripped the trace off the board But I learned the 2nd time and it went much quicker and prettier.
Output resistors = 3.3R

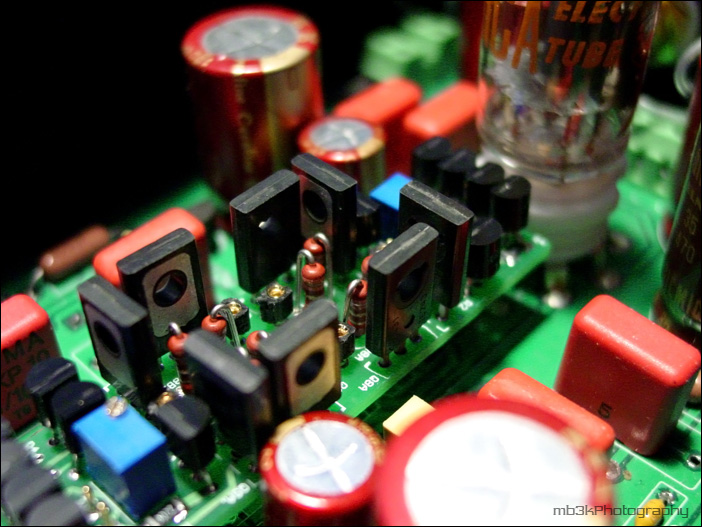

MJE243, and MJE253 ouput transistors

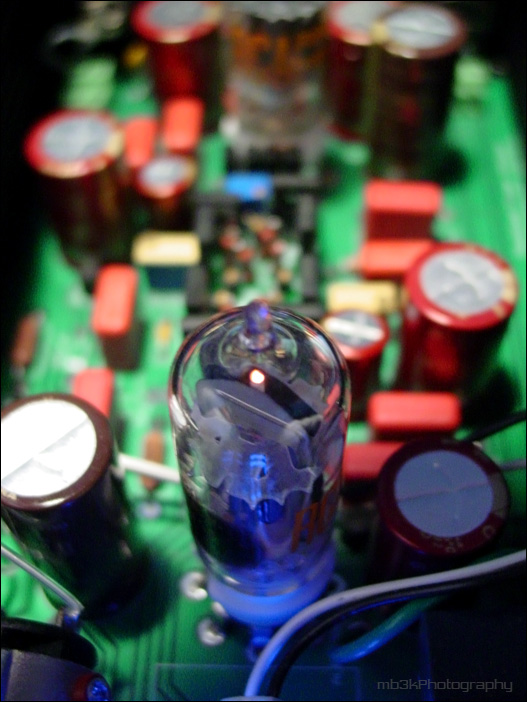

Random tube shot... 12FK6 tubes
__________________ mb3k.com
Slowly building the second rig...
On the Couch: Teac PD-H300 -> NONOZ III DAC -> PPA/Millet Hybrid -> K501/SR325
On the Desk: iBook G4 12" -> META42 w/ AD8620 -> HD330/B&O Form2
On the Move: iPod Nano 8GB -> EX70/ER-6
In progress: M3, Zen, JLH and a new DAC (and more...)
Very nice M3, love what you did to encase the PSU, and I'm really digging that volume knob.
__________________ [ S O U R C E ] Lenovo ThinkPad T61p | Creative SBLive! w. kX Project Mod| iPod Colour 60GB [ W I R I N G ] TARA Labs Prism RCA | Monster XP Speaker | DIY iPod-RCA | DIY Mini-Mini | DIY iPod-Mini [ A M P L I F I C A T I O N ] Yamaha R-95 Stereo Receiver | Cmoy w. TLE2426 Railsplitter [ H E A D P H O N E S ] Sennheiser HD-477 | JVC HA-D990 | Westone UM1 [ L O U D S P E A K E R S ] Energy C-300 Floorstanders | KLH ASW12-120 12" Subwoofer [ W A N T S ] Grado SR-325i | Mini3 Parts
Wonderful. I wish we had access to good Chassis here in the states. All it seems we have is Parmetal Hammond and Lansing which I am all so tired of using. Looks like I will be doing some internation chassis shopping
Another manufacturer of beautyful chassis is probably ATI from Thailand.
Due to the high shipping cost (all the way from Thailand), the final price of a chassis could be on the high side.
I use this ATI-738U for my next build, it looks really great in real life .
MH Diamond Buffer
But I learned the 2nd time and it went much quicker and prettier.
(Ferrari, correct me if I am wrong here
)
Linear Mode
