Post pics of your builds....

[bperboy]

Here's some pics of my DAC201 from AudioDIYLab.com; enjoy!








The power switch kind of just hangs out, and generally, it's not my best case job, but it's completely functional, and it sounds great!

[mb3k]

^ Nice DAC!

Here's my build of the night.

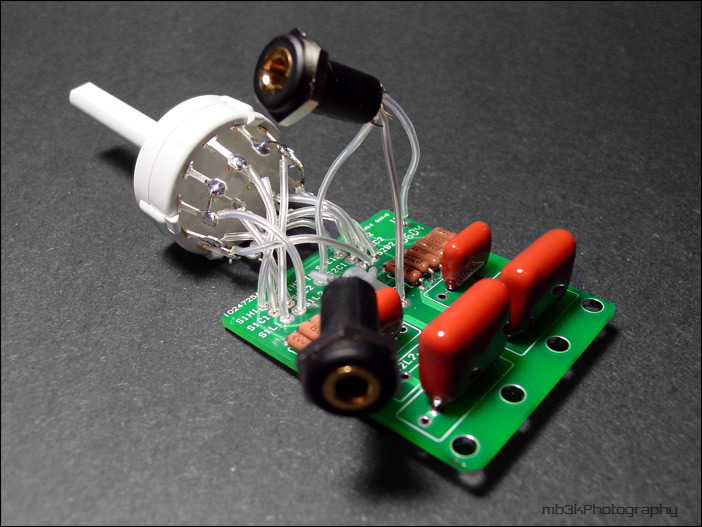

Modified linkwitz with a Lorlin rotary switch

Casing it up later - not sure what enclosure to put it in.

[GregVDS]

Here is my last finished board: a simple Millett Hybrid, nearly ready to be boxed. Bias 12.5V, Diamond Buffered. In the pics, tubes are Sylvania 12FM6, but I intend to listen through 12AE6A.









I hope to be able to finish the box soon and show it here,

All the best,

GregVDS

[GregVDS]

Here are some pics of my finished tandem, M³ and STEPS I currently use all day long at work. Talk about portable gear! All this go in a laptop Crumpler bag, with a Grado SR-325i. Hopefully, I go with my car.

the M³ incorporates a crossfeed board, hence the third left knob.
dcV cable uses speakon connectors.

Enjoy the pics.






















All the best,

GregVDS

[bperboy]

Very nice Greg; I love that beefy power cable between the STEP and M3!

[mb3k]

^ Wow that's intense.
Great work! I'm also getting my cases engraved, hopefully mine turns out as beautiful as yours.
Kudos!!!

[flecom]

Originally Posted by Polaris111688

Hmmm... Hey! Thanks for the heads up! I'm definitely going to look around for those now. Just out of curiousity though, do you have any supplies higher than 2150V?

highest I have seen is like ~5500v

check out
http://www.mi-lasers.com/cgi-bin/sho...s=power_supply

but you can find them cheaper on ebay, even from mi-lasers ebay store lol

[Polaris111688]

Thanks, dude. I'm looking at one that costs about 200 bucks right now. It should be sufficient (4000V).

[ntrl]

Hi All!

My One-layer PCB version of Modified Linkwitz Crossfeed. Blue Moon variant
Lazer Transfer Method.
crossfeed.pcb (ExpressPCB format)





Miniwork log here

[GregVDS]

Great work!

I absolutely should try to do this kind of stuff.

I'm a great fan of the crossfeed circuit, and was wondering why yours have only one double dual switch, you choosed the high or low effect and decided not to change?

All the best,

GregVDS
